제품 상세보기

제품 상세보기

장비명
TGA/FTIR Accessory
사용온도
300도 까지
측정샘플
Gas
크기/무게
W 91 X D 140 X H 121 mm
적용장비
FTIR

TGA/FTIR Accessory

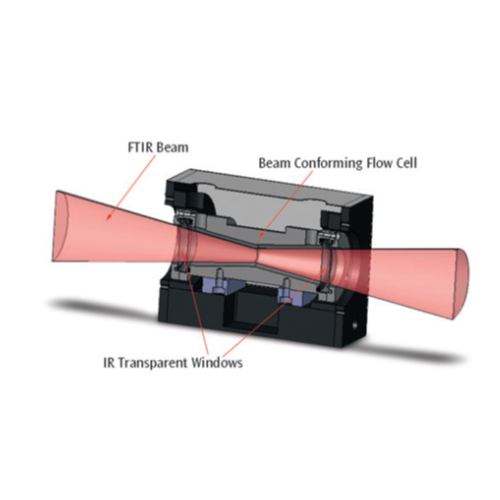

.  FT-IR 감도 극대화를 위한 100mm IR beam pathlength

.  Interfaces with most TGA models

.  Flow Cell 및 Transfer Line은 최대 300도까지 사용 가능

.  Interchangeable windows



기본구성

.  10162-24XX TGA/FTIR Accessory



IR Transparent Windows (필수 선택)



 Part Number

  Description

 10160-1320

  Window, KBr, 38 x 6mm

 10160-1329

  Window, ZnSe, 38 x 6mm



Heated Transfer Line (필수 선택)



 Part Number

  Description

 10115-0001

  Heated Transfer Line for Shimadzu TGA50 Includes evolved gas port modifications

 10115-0005

  Heated Transfer Line for Mettler 851 TGA

 10115-0006

  Heated Transfer Line for Mettler 851e/LF or TGA-DSC1/2/3 TGA

 10115-0007

  Heated Transfer Line for TA Instruments Q600 TGA

 10115-0008

  Heated Transfer Line for TA Instruments Discovery/Q5000R

 10115-0009

  Heated Transfer Line for TA Instruments Q50/Q500 TGA

 10115-0010

  Heated Transfer Line for TA Instruments 2050/2950

 10115-0011

  Heated Transfer Line for Netzsch TGA

 10115-0012

  Heated Transfer Line for PESTA6/4000 110V TGA

 10115-0013

  Heated Transfer Line for SETARAM

 10115-0014

  Heated Transfer Line for PESTA6/4000 220V TGA

 10115-0017

  TGA Universal Transfer Line

 10115-0018

  PTFE TGA Transfer Line, 230°C max.

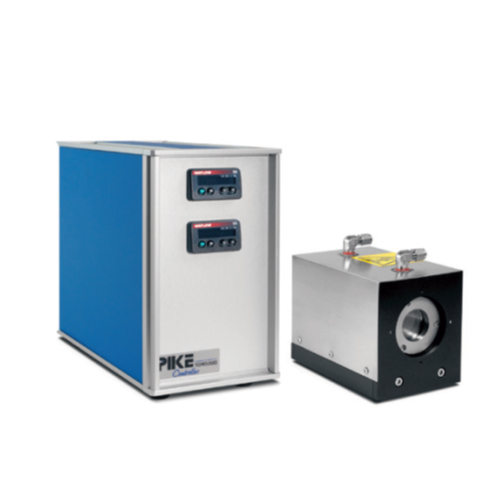

Temperature Controllers (필수 선택)



 Part Number

  Description

 10076-1120

  Dual Digital Temperature Control Module

 10076-1130

  4-Zone Digital Temperature Control Module for Shimadzu TGA



선택구성



 Part Number

  Descripion

 10162-2309

  High-Temperature O-Rings, max temp 325 °C

 10162-2308

  High-Temperature O-Rings, max temp 325 °C

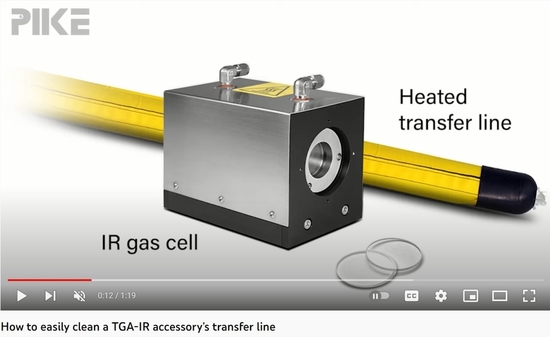

제품 관련 영상

















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
