Short-Path Gas Cells
. 일반적으로 중량 1% 이상의 성분 농도를 가진 가스 샘플 분석
. 100-mm 및 50-mm 경로길이 버전
. HT 가스셀: FTIR 검출기에 더 많은 에너지 제공, 흐름 압력 및 밀봉을 위한 유리마개 포함
. EC 가스셀: Standard septum-styled sealing 제공
기본구성
. 1016222XX Short-Path Gas cells ( Glass Body, O-링, 셀 홀더 포함)
. 1016222XX Short-Path HT Gas cell, 50/100-mm (HT 가스 셀은 두 개의 38x6mm windows 선택 필요)

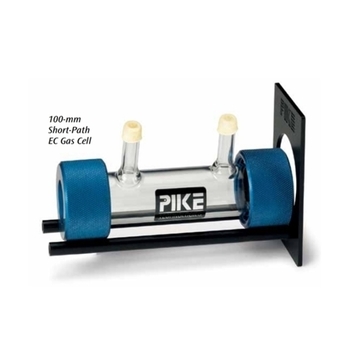

. 1016222XX Short-Path EC Gas cell, 50/100-mm (EC 가스 셀은 두 개의 25x4mm windows 선택 필요)
. Windows 2개 이상 선택 필요
선택구성
. Short-Path Gas Cells
Part Number |
Description |
101622200 |
Short-Path HT Gas Cell, 100-mm 경로길이 |
101622250 |
Short-Path HT Gas Cell, 50-mm 경로길이 |
101622100 |
Short-Path EC Gas Cell, 100-mm 경로길이 |
101622150 |
Short-Path EC Gas Cell, 50-mm 경로길이 |
. Windows for Short-Path Gas Cell
Part Number |
|
|
38 X 6 mm |
25 X 4 mm |
Description |
101601322 |
101601217 |
BaF2 |
101601342 |
101601211 |
CaF2 |
101601320 |
101601133 |
KBr |
101601321 |
101601124 |
NaCI |
101601329 |
101601114 |
ZnSe |
. Replacement parts
Part Number |
|
|
HT Gas Cell |
EC Gas Cell |
Description |
101622209 |
101622109 |
Viton O-Rings |
101622202 |
101622102 |
Cell Window Cap |
101622205 |
101622105 |
Gas Cell Holder |
101622201 |
101622101 |
Glass Body for 100-mm Cell |
101622255 |
101622155 |
Glass Body for 50-mm Cell |
101622107 |
101622106 |
Septum Caps |
