Global Group

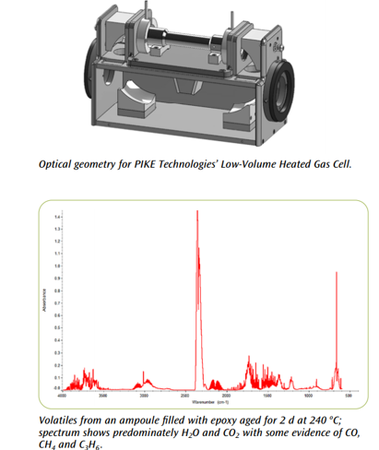

Low-Volume Heated Gas Cell
. 가스양이 제한적인 배출가스 및 헤드스페이스 종을 결정하고 정량화하는 적외선 애플리케이션에 이상적
. 300ºC 까지 가열 가능
. IR Screening 진단도구로 간단한 가스 흐름 실험 설정에 쉽게 연결
. Gas Cell Pathlength : 10 및 12cm
. Gas Cell Diameter : 7 mm
. Gas Cell Volume : 3.8 및 4.6 ml
. 크기 (너비 x 깊이 x 높이 )
- 12cm pathlength : 223 x 110 x 134 mm
- 10cm pathlength : 197 x 110 x 134 mm
기본구성
. 1016462XX Low-Volume Heated Gas Cell, 10cm
. 1016461XX Low-Volume Heated Gas Cell, 12cm
. Temperature Controllers
. 13 x 2 mm Windows
선택구성
. Temperature Controllers
Part Number |
Description |
100762550 |
Digital Temperature Control Module |
100070207 |
PIKE TempPRO Software |
. 13 X 2 mm Windows
Part Number |
Description |
101601218 |
BaF2 |
101601213 |
CaF2 |
101601135 |
KBr |
101601170 |
NaCI |
101601115 |
ZnSe |
101605201 |
SiO2 |
. Replacement Parts
Part Number |
Description |
101646001 |
Viton O-Rings, max, temp. 200 ºC |
101646002 |
High-Temperature O-Rings, max. temp. 300 ºC |
