Stainless Steel Short-Path Gas Cells
. 고농도 증기 가스 분석
. 광범위한 경로길이 : 1, 2, 5, 10, 15, 20-cm
. 최대 가열 온도 300°C 모델 사용 가능 (최대 정밀도 또는 특정 구성 요소의 응축 방지 위함)
. 유지보수 및 세척이 용이하도록 설계
. Purge Collar는 스펙트럼에서 대기의 수증기와 CO2 간섭 제거
. 1, 2-cm pathlength : 25 x 4 mm windows, 5, 10, 15, 20-cm pathlength : 38 x 6 mm windows 사용
기본구성
. 10164XXXX Stainless Steel Short-Path Gas Cells
. Heated Short-path gas cells 선택 가능
. IR Transparent windows 2개 이상 선택 필요
선택구성
. Stainless Steel Short-Path Gas Cell
Part Number |
Description |
1016421XX |
Stainless Steel Gas Cell, 1cm |
1016422XX |
Stainless Steel Gas Cell, 2cm |
1016425XX |
Stainless Steel Gas Cell, 5 cm |
1016420XX |
Stainless Steel Gas Cell, 10 cm |
1016427XX |
Stainless Steel Gas Cell, 15 cm |
1016429XX |
Stainless Steel Gas Cell, 20 cm |

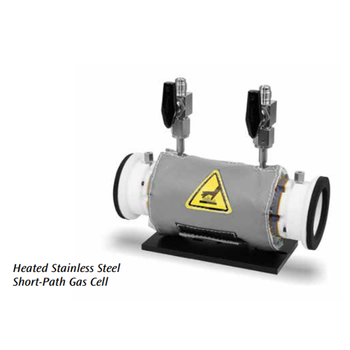

. Heated Short-Path Gas Cells
Part Number |
Description |
1016431XX |
Heated Stainless Steel Gas Cell, 300 ºC, 1 cm |
1016432XX |
Heated Stainless Steel Gas Cell, 300 ºC, 2 cm |
1016435XX |
Heated Stainless Steel Gas Cell, 300 ºC, 5 cm |
1016430XX |
Heated Stainless Steel Gas Cell, 300 ºC, 10 cm |
. IR Transparent Windows
Part Number |
|
|
25 x 4 mm (1,2 cm) |
38 x 6 mm (5, 10, 15, 20 cm) |
Description |
101601217 |
101601322 |
BaF2 |
101601211 |
101601342 |
CaF2 |
101601133 |
101601320 |
KBr |
101601127 |
101601343 |
KRS-5 |
101601124 |
101601321 |
NaCI |
101601114 |
101601329 |
ZnSe |
101601110 |
- |
ZnSe, Anti-Reflective Coating, 1-side |
101601109 |
- |
ZnSe, Anti-Reflective Coating, 2-sides |
. Valves and Replacement Parts
Part Number |
Discription |
101644000 |

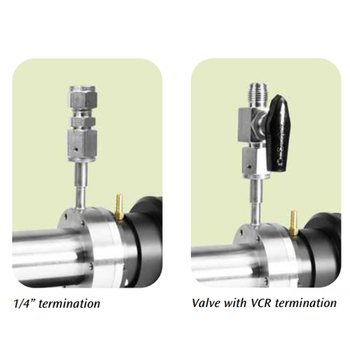

VCR Valve to VCR Termination Kit |
101644001 |
Valve to 1/4 inch Compression Termination Kit |
101644002 |
1/4 inch Termination Kit |
101644006 |
Viton O-Rings, 25 mm, max. temp. 200 ºC |
101644008 |
Viton O-Rings, 38 mm, max. temp. 200 ºC |
101644007 |
High Temperature O-Rings, 25 mm, 300 ºC |
101644009 |
High Temperature O-Rings, 38 mm, 300 ºC |
