Long-Path Gas Cells
측정방식
투과 Transmission
측정샘플
가스
특 징
저농도 가스 분석, Fixed & Variable Pathlength
적용장비
FTIR

Long-Path Gas Cells



.  Gas 샘플의 미량 성분 분석

.  일반적인 농도 범위: ppm to ppb levels

.  접힌 경로 디자인이 특징으로 컴팩트한 치수 내에서 확장된 경로길이 제공

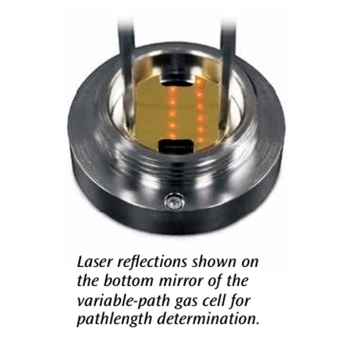

.  2.4-30.0m의 Fixed Pathlength 및 1-16m의 Variable Pathlength Gas cell 사용 가능

.  최대 200 °C까지 가열 가능



기본구성

.  10163-XXXX Long-Path Gas Cells (KBr window, valves with barb fittings 포함)

.  Heated Long-Path Gas Cells 선택 가능

.  Windows 선택 가능



선택구성

.  Long-Path Gas Cell Specifications



　

 2.4m fixed

 5.0 fixed

 10.0 fixed

 20.0 fixed

 30.0 fixed

 1-16 m Variable

 Base Path(mm)

 100

 157

 250

 500

 625

 333

 Body Material

 Metal

 Metal

 Glass or   Metal

 Glass or   Metal

 Glass

 Glass

 Optics Coatings

 Gold

 Gold

 Gold

 Gold

 Gold

 Gold

 Window Material

 KBr

 KBr

 KBr

 KBr

 KBr

 KBr

 Window Dimension   (mm)

 37.5 x 4

 25 x 4

 25 x 4

 25 x 4

 25 x 4

 25 x 4

 # Window

 1

 2

 2

 2

 2

 2

 Cell Volume (L)

 0.1

 0.5

 2.2

 7.2

 12.8

 3.5



.  Long-Path Gas Cells



 Part Number

  Description

 10163-12XX

  2.4m Metal Gas Cell

 10163-13XX

  2.4m Stainless Steel Gas Cell

 10163-15XX

  5m Metal Gas Cell

 10163-14XX

  5m Stainless Steel Gas Cell

 10163-10XX

  10m Metal Gas Cell

 10163-17XX

  10m Stainless Steel Gas Cell

 10163-11XX

  10m Glass Gas Cell

 10163-16XX

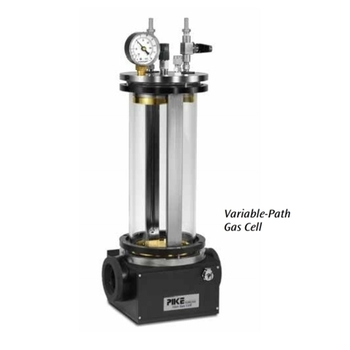

  1-16v m Glass Gas Cell

 10163-18XX

  20m Stainless Steel Gas Cell

 10163-20XX

  20m Glass Gas Cell

 10163-30XX

  30m Glass Gas Cell

 10163-19XX

  30m Stainless Steel Gas Cell



.  Heated Long-Path Gas Cells



 Part Number

  Description

 10163-42XX

  2.4m Heated Metal Gas Cell, 115V

 10163-42XX-30

  2.4m Heated Metal Gas Cell, 230V

 10163-35XX

  2.4 Heated Stainless Steel Gas Cell, 115V

 10163-35XX-30

  2.4 Heated Stainless Steel Gas Cell, 230V

 10163-45XX

  5m Heated Metal Gas Cell, 115V

 10163-45XX-30

  5m Heated Metal Gas Cell, 230V

 10163-31XX

  5m Heated Stainless Steel Gas Cell, 115V

 10163-31XX-30

  5m Heated Stainless Steel Gas Cell, 230V

 10163-40XX

  10m Heated Metal Gas Cell, 115V

 10163-40XX-30

  10m Heated Metal Gas Cell, 230V

 10163-32XX

  10m Heated Stainless Steel Gas Cell, 115V

 10163-32XX-30

  10m Heated Stainless Steel Gas Cell, 230V

 10163-41XX

  10m Heated Glass Gas Cell, 115v

 10163-41XX-30

  10m Heated Glass Gas Cell, 230v

 10163-46XX

  1-16v Heated Glass Gas Cell, 115V

 10163-46XX-30

  1-16v Heated Glass Gas Cell, 230V

 10163-43XX

  20m Heated Glass Gas Cell, 115V

 10163-43XX-30

  20m Heated Glass Gas Cell, 230V

 10163-33XX

  20m Heated Stainless Steel Gas Cell, 115V

 10163-33XX-30

  20m Heated Stainless Stell Gas Cell, 230V

 10163-47XX

  30m Heated Stainless Steel Gas Cell, 115V

 10163-47XX-30

  30m Heated Stainless Steel Gas Cell, 230V



.  Replacement Windows



 Part Number

　

 25 x 4 mm

 37.5 x 4 mm

  Description

 10160-1217

 10160-1281

  BaF2

 10160-1211

 10160-1287

  CaF2

 10160-1133

 10160-1288

  KBr

 10160-1178

 10160-1289

  KCl

 10160-1127

 -

  KRS-5

 10160-1124

 10160-1290

  NaCl

 10160-1114

 10160-1291

  ZnSe

 10160-1110

 10160-1286

  ZnSe, Anti-Reflective Coating 1-Side

 10160-1109

 -

  ZnSe, Anti-Reflective Coating 2-Sides



.  Replacement Parts



 Part Number

  Description

 10176-1710

  Long-Path Gas Cell Temperature Control Module, 115 VAC

 10076-1720

  Long-Path Gas Cell Temperature Control Module, 230 VAC

 10007-0207

  PIKE TempPRO Software

 10163-1009

  Pathlength Verification Tool, 2.4 m and 5 m

 10163-100910

  Pathlength Verification Tool, 10 m and 20 m

 10163-1001

  Viton Gas Cell Window O-Ring, 5, 10, 20, 16v m

 10163-1208

  Perfluoroelastomer O-Ring Kit, 2.4 m

 10163-1506

  Perfluoroelastomer O-Ring Kit, 5 m

 10163-1007

  Perfluoroelastomer O-Ring Kit, 10 m

 10163-2006

  Perfluoroelastomer O-Ring Kit, 20 m
