제품 상세보기

제품 상세보기

장비명
GladiATR
측정방식
Single reflection
측정샘플
다양한 고체, 액체 샘플
특 징
Monolithic Crystal
크기/무게
W 140 x D 205 x H 340 mm
적용장비
모든 FTIR (630, Alpha 등 제외)

GladiATR



.  Monolithic Diamond

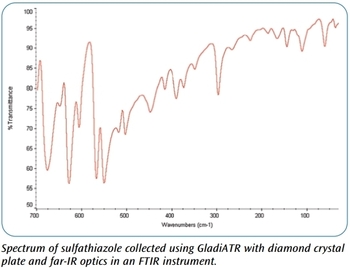

.  mid-, far-Infrared

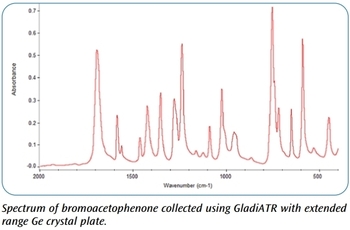

.  Ge crystal plate: 고굴절률 샘플 분석

.  ATR Crystal 선택: Diamond, Ge

.  입사각: 45도

.  Crystal Dimensions: 3.0 mm diamter

.  최대 압력: 30,000 psi

.  스펙트럼 범위

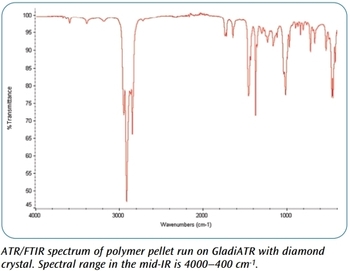

- Diamond: 4000 to 30cm-1 (IR optics dependent)

-  Ge, 4000 to 450cm-1

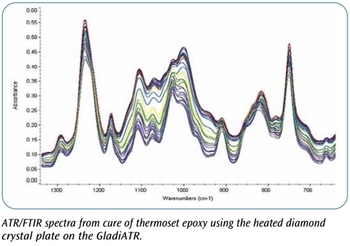

.  Heating Options

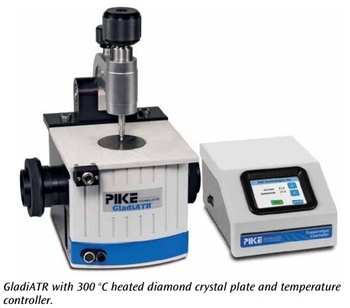

- Diamond, 210 or 300 ºC maximum

- Ge, 130 ºC maximum

.  Cooling Options: Liquid jacketed crystal plates available

.  Specular Reflection Option: Optional, 45도 degree nominal angle of incidence



기본구성

.  10026-18XX GladiATR Single Reflection ATR base optics, with heating capability up to 210 ºC or 300 ºC

.  Stainless Top, Crystal Plates, Temperature Control 등 선택 필요



선택구성

.  Stainless Top (1개 이상 선택 필요)



 Part Number

  Description

 10026-2001

  GladiATR Standard Stainless Top

 10026-2002

  GladiATR Heated Stainless Top

 10026-2003

  GladiATR Liquid Jacketed Stainless Top



.  Crystal Plates (1개 이상 선택 필요)







 Part Number

  Description

 10026-2100

  Diamond Crystal Plate

 10026-2050

  Ge Crystal Plate

 10026-2200

  Specular Reflection Plate



.  Pressure Clamp, All models (고체 및 분말 샘플 측정시 선택 필요)



 Part Number

  Description

 10026-3020

  High-Pressure Clamp

 10076-6026

  Digital Force Adapter for High-pressure Clamp



.  Temperature Controlled Crystal Plates





 Part Number

  Description

 10026-4102

  Heated Diamond Crystal Plate, 300 °C

 10026-4100

  Heated Diamond Crystal Plate, 210 °C

 10026-4200

  Liquid Jacketed/Heated Diamond Crystal Plate

 10026-4110

  Liquid Jacketed Diamond Crystal Plate

 10026-4050

  Heated Ge Crystal Plate, 130 °C

 10026-4150

  Liquid Jacketed Ge Crystal Plate, 130 °C

 10076-1610

  Digital Temperature Control Module

 10007-0207

  PIKE TempPRO Software





.  Sampling Options



 Part Number

  Description

 10025-3095

  Flat Tip for High-Pressure Clamp

 10025-3093

  Swivel Tip for High-Pressure Clamp

 10025-3092

  Concave Tip for High-Pressure Clamp

 10025-3099

  High-Pressure Tip Assortment

 10026-5014

  Flow-Through Attachment, 300°C, 100μL

 10026-5013

  Liquids Retainer and Volatiles Cover Set

 10026-5015

  Liquids Retainer and Volatiles Cover Set, 300°C

 10026-5010

  Liquids Retainer, 260°C

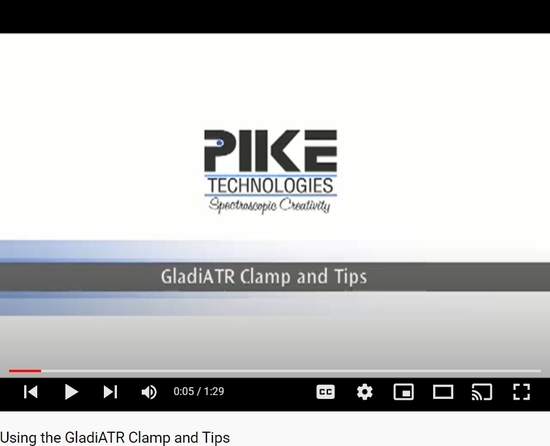

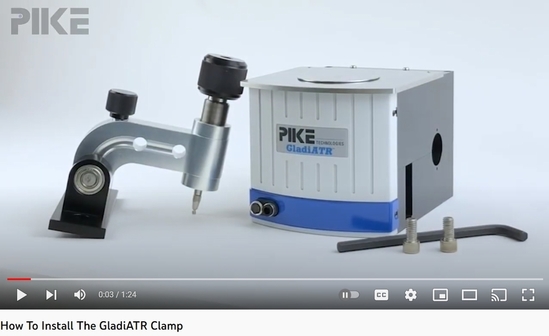

제품 관련 영상

















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
