HATRPlus
. 저농도 성분 분석의 최대 감도를 위한 최대 20번의 내부 반사
. ZnSe, KRS-5, Ge, AMTIR, Si Crystals를 포함한 교체가능한 Crystal 구성
. 높은 신호대잡음비를 제공
. HATR은 액체, 반 액체 재료 및 여러 고체의 분석에 사용되는 constant path transmission cells, salt plates, KBr pellets을 성공적으로 대체함
. 일정하고 재현 가능한 유효 경로 길이가 특징으로 정성적 및 정량적 응용 프로그램 모두에 적합
. HATRPlus는 크기가 커 구획 외부용으로 설계되었고 매우 큰 샘플을 분석할 수 있음
. Temperature range: Ambient to 120 °C
. HATR Crystals: ZnSe, Si, Ge, AMTIR, KRS-5
. Crystal Dimensions: 80 x 10 x 4 mm / 80 x 10 x 2 mm
. 샘플에 대한 반사 수
- 10 for 45 degres, 4-mm thick
- 20 for 45 degree, 2-mm thick
- 5 for 60 degree, 4-mm thick

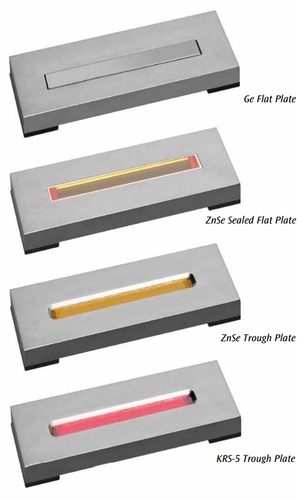

HATR Crystal Plate Choices
Flat Plate
- 폴리머, 필름 샘플을 포함한 고체 샘플 분석용
- Trough plate 배열보다 크기가 큰 고체 샘플에 이상적

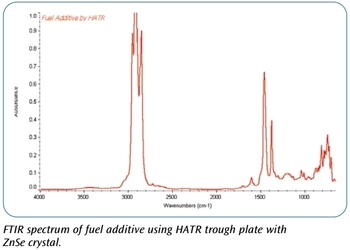

Trough Plate
- 샘플을 수용할 수 있는 크고 오목한 crystal로 일반적으로 액체, 분말 또는 페이스트 샘플을 쉽게 샘플링 할 수 있도록 설계됨
- 빠르게 증발하는 샘플의 경우, 샘플링 영역을 덮기 위해 휘발성 물질 덮개를 사용해야함
- Soft powders는 Powder press 옵션을 사용하며 이 장치는 샘플이 채워진 trough 위에 직접 놓고 원하는 결과를 얻을 때까지 손으로 누름

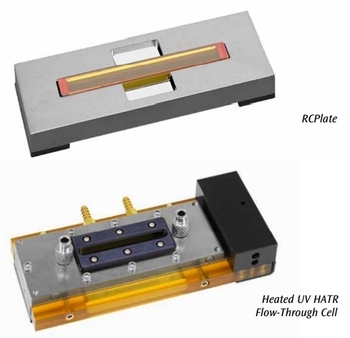

RCPlate
- HATR 크리스탈의 코팅을 확인해야하는 특수 응용 분야를 위해 RCPlate 옵션 제공
- HATR 크리스탈을 쉽게 제거하고 재삽입이 가능하도록 설계됨

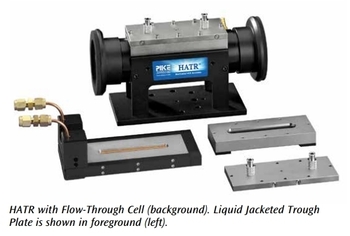

Flow-Through cell
- Dynamic laboratory를 위한 다목적 옵션
- ATR Crystal은 O-rings로 밀봉되어 있어 사용자가 크리스탈을 변경할 수 있음
- 샘플은 주사기 또는 1/16-인치 압축피팅에 연결된 튜브를 통해 주입될 수 있음
기본구성
. 1002419XX HATRPlus
. Temperature contorl, Flat/Trough Plate 등 선택 필요
선택구성
. Bundled HATR Systems
Part Number |
Description |
1002210XX |
HATR Trough Plate system with 45º ZnSe Crystal includes Trough Plate, Volatiles cover and powder press |
1002211XX |
HATR Flat Plate system with 45º ZnSe Crystal includes Flat Plate and HATR Pressure Clamp |
1002212XX |
HATR Combined Trough and Flat Plate system with 45º ZnSe Crystals includes Trough Plate, Flat Plate, Volatiles Cover, Powder press and Pressure Clamp |
1002411XX |
HATRPlus Flat Plate system with 45º ZnSe Crystal includes Flat Plate and HATR Pressure Clamp |
. HATR Base Optics
Part Number |
Description |
1002219XX |
HATR Platform Optics Assembly |
1002419XX |
HATRPlus Platform Optics Assembly |
. Pressure Clamp (고체, 필름, 파우더 분석시 선택 필요)
Part Number |
Description |
100223050 |
HATR (pivoting) Pressure Clamp |
100223054 |
HATR High-Pressure Clamp |
100243050 |
HATRPlus (pivoting) Pressure Clamp |
100243053 |
HATRPlus High-Pressure Clamp |
. Crystal Plates (1개 이상 선택 필요)
Part Number |
Description |
10022201045 |
Trough Plate, ZnSe, 45º |
10022202045 |
Flat Plate, ZnSe, 45º |
10022202445 |
Sealed Flat Plate, ZnSe, 45º |
10022201245 |
Trough Plate, ZnSe, 45º, 2 mm |
10022202245 |
Flat Plate, ZnSe, 45º, 2 mm |
10022203045 |
Trough Plate, KRS-5, 45º |
10022204045 |
Flat Plate, KRS-5, 45º |
10022205045 |
Trough Plate, Ge, 45º |
10022206045 |
Flat Plate, Ge, 45º |
10022206445 |
Sealed Flat Plate, Ge, 45º |
10022205245 |
Trough Plate, Ge, 45º, 2 mm |
10022206245 |
Flat Plate, Ge, 45º, 2 mm |
10022207045 |
Trough Plate, AMTIR, 45º |
10022208045 |
Flat Plate, AMTIR, 45º |
10022209045 |
Trough Plate, Si, 45º |
10022210045 |
Flate Plate, Si, 45º |

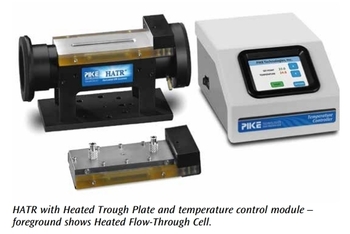

. Heated Crystal Plates
Part Number |
Description |
100225110 |
HATR Heated Trough Plate, ZnSe, 45º |
100225120 |
HATR Heated Trough Plate, AMTIR, 45º |
100225130 |
HATR Heated Trough Plate, KRS-5, 45º |
100225140 |
HATR Heated Trough Plate, Si, 45º |
100225150 |
HATR Heated Trough Plate, Ge, 45º |
Part Number |
Description |
100225210 |
HATR Heated Flow-Through Cell, ZnSe, 45º |
100225212 |
HATR Heated Flow-Through Cell, ZnSe, 45º, 2 mm |
100225220 |
HATR Heated Flow-Through Cell, AMTIR, 45º |
100225230 |
HATR Heated Flow-Through Cell, KRS-5, 45º |
100225240 |
HATR Heated Flow-Through Cell, Si, 45º |
100225250 |
HATR Heated Flow-Through Cell, Ge, 45º |
100225252 |
HATR Heated Flow-Through Cell, Ge, 45º, 2 mm |
100225225 |
HATR Heated Flow-Through Cell with UV Port, AMTIR, 45º |
Part Number |
Description |
100761610 |
Digital Temperature Control Module |
100070207 |

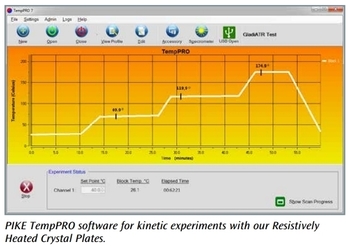

PIKE TempPRO Software |
. Flow-Through Cells
Part Number |
Description |
100224010 |
HATR Flow-Through Cell, ZnSe, 45º |
100224012 |
HATR Flow-Through Cell, ZnSe, 45º, 2 mm |
100224020 |
HATR Flow-Through Cell, AMTIR, 45º |
100224030 |
HATR Flow-Through Cell, KRS-5, 45º |
100224040 |
HATR Flow-Through Cell, Si, 45º |
100224050 |
HATR Flow-Through Cell, Ge, 45º |
100224052 |
HATR Flow-Through Cell, Ge, 45º, 2 mm |
100225228 |
HATR Flow-Through Cell with UV Port, AMTIR, 45º |
. Liquid Jacketed Crystal Plates
Part Number |
Description |
100225310 |
HATR Liquid Jacketed Trough Plate, ZnSe, 45º |
100225320 |
HATR Liquid Jacketed Trough Plate, AMTIR, 45º |
100225330 |
HATR Liquid Jacketed Trough Plate, KRS-5, 45º |
100225340 |
HATR Liquid Jacketed Trough Plate, Si, 45º |
100225350 |
HATR Liquid Jacketed Trough Plate, Ge, 45º |
. Liquid Jacketed, Flow-Through Crystal Plates
Part Number |
Description |
100225410 |
HATR Liquid Jacketed Flow-Through Plate, ZnSe, 45º |
100225412 |
HATR Liquid Jacketed Flow-Through Plate, ZnSe, 45º, 2 mm |
100225420 |
HATR Liquid Jacketed Flow-Through Plate, AMTIR, 45º |
100225430 |
HATR Liquid Jacketed Flow-Through Plate, KRS-5, 45º |
100225440 |
HATR Liquid Jacketed Flow-Through Plate, Si, 45º |
100225450 |
HATR Liquid Jacketed Flow-Through Plate, Ge, 45º |
100225452 |
HATR Liquid Jacketed Flow-Through Plate, Ge, 45º, 2 mm |
. RCPlate
Part Number |
Description |
100222300 |
RCPlate for HATR (for 45º crystals) |
. Replacement Parts
Part Number |
Description |
100223051 |
HATR Volatiles Cover |
100223052 |
HATR Powder Press |
101605554 |
Crystal, Trap, ZnSe, 45º, 80 x 10 x 4 mm |
101605559 |
Crystal, Trap, ZnSe, 45º, 80 x 10 x 2 mm |
101605555 |
Crystal, Trap, KRS-5, 45º, 80 x 10 x 4 mm |
101605556 |
Crystal, Trap, Ge, 45º, 80 x 10 x 4 mm |
101605560 |
Crystal, Trap, Ge, 45º, 80 x 10 x 2 mm |
101605557 |
Crystal, Trap, AMTIR, 45º, 80 x 10 x 4 mm |
101605558 |
Crystal, Trap, Si, 45º, 80 x 10 x 4 mm |
101605561 |
Crystal, Trap, ZnSe, 60º, 80 x 10 x 4 mm |
101605562 |
Crystal, Trap, Ge, 60º, 80 x 10 x 4 mm |
100223032 |
Spacer for HATR Flow cell, 2 mm |
100223033 |
Spacer for HATR Flow cell, 4 mm |
100223040 |
Viton O-Ring for HATR Flow-Through Cell, Upper |
100223045 |
Viton O-Ring for HATR Flow-Through Cell, Lower |
100223041 |
Perfluoroelastomer O-Ring for HATR Flow-Through Cell, Upper |
100223046 |
Perfluoroelastomer O-Ring for HATR Flow-Through Cell, Lower |
