장비명
ATRMax II
측정방식
Multiple reflection
측정샘플
다양한 고체, 액체 샘플
특 징
25-65 Degrees Variable angle
적용장비
모든 FTIR (630, Alpha 등 제외)

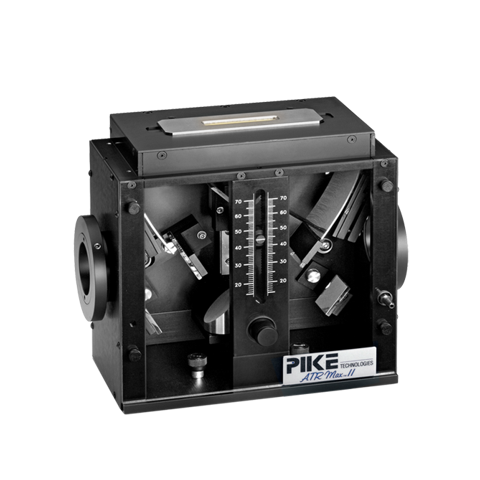

ATRMax II



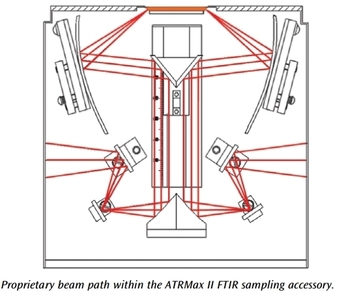

.  가변각도 다중반사 수평 ATR 악세사리

.  25도에서 65도까지의 입사각 범위로 샘플 분석 가능

.  입사각에 따른 3에서 12 사이의 반사수

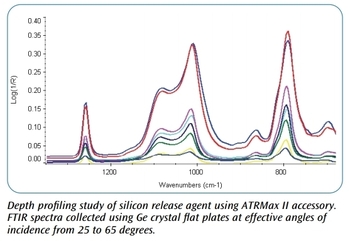

.  0.5 ~ 10 micron 깊이의 침투 - IR Beam이 샘플에 침투하는 깊이와 ATR Crystal의 빛 반사수에 대한 실험적 제어를 제공하여 주어진 실험에 대한 효과적인 IR Beam 경로길이를 결정

.  두 가지 Crystal Plate로 구성: Flat, Trough Crystal Plate

.  모든 Plates에 대한 온도 조절 옵션

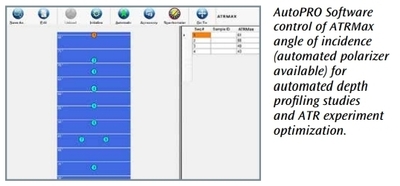

.  Automated Option available

.  ATR Crystal Choices: ZnSe, Ge, AMTIR, KRS-5, Si

.  Temperature range: Ambient to 120 °C



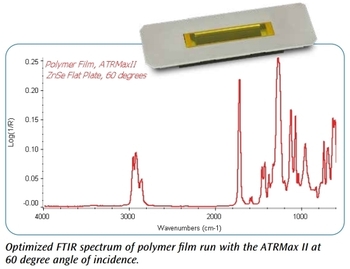

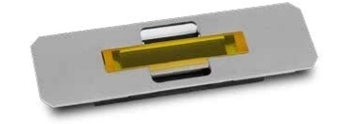

Flat Crystal Plate





.  코팅, 필름, 비입자성 고체 샘플 분석에 사용

.  샘플과 Crystal 표면 사이의 접촉을 제공하려면 Sample Clamp가 필요



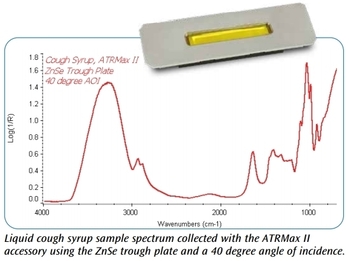

Trough Crystal Plate





.  액체, 페이스트, 분말 샘플 분석에 사용

.  이 Crystal Plate style과 함께 사용할 수 있도록 Volatiles cover와 Powder press가 포함됨



RCPlate





.  ATR Crystal에서 코팅 샘플 분석시 사용

.  ATR Crystal을 쉽게 제거하고 재삽입이 가능하도록 설계됨

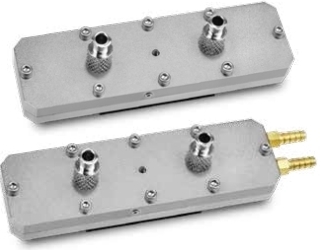

Flow-Through Cells





.  제거 가능한 크리스탈을 특징으로하는 다양한 Flow-Through Cell을 사용할 수 있음

.  이를 통해 크리스탈을 교체할 수 있고 "끈적한" 샘플을 쉽게 청소할 수 있음

.  Flow cell은 주변 측정 및 가열 및 liquid jacketed 온도 제어를 위해 구성될 수 있음

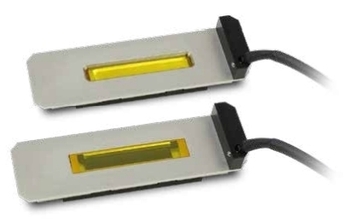

Resistively Heated Crystal Plates





.  저항 가열식 Crystal Plate option은 Trough, Flat, Flow-through cell 버전에 사용할 수 있음

.  이러한 Heated Crystal Plates는 온도 제어 모듈을 사용하여 구동됨



기본구성

.  1002319XX ATRMax II Variable Angle HATR

.  ARTMax II System Configurations, Crystal Plates, Temperature Control 등 선택 필요



선택구성

.  ATRMax II System Configurations



 Part Number

  Description

 1002310XX

  ATRMax II Trough Plate system with 45º ZnSe Crystal includes Trough Plate, Volatiles cover and Powder press

 1002311XX

  ATRMax II Flat Plate system with 45º ZnSe Crystal includes Flat Plate and Pressure clamp

 1002312XX

  ATRMax II Combined Trough and Flat Plate system with 45º ZnSe Crystals includes Trough plate, Flat plate, Volatiles cover, Powder press and Pressure clamp



.  Crystal Plates (1개 이상 선택 필요)



 Part Number

  Description

 100232001

  Trough Plate, ZnSe, 45º

 100232011

  Flat Plate, ZnSe, 45º

 100232021

  Trough Plate, ZnSe, 30º

 100232031

  Flat Plate, ZnSe, 30º

 100232041

  Trough Plate, ZnSe, 60º

 100232051

  Flat Plate, ZnSe, 60º

 100232003

  Trough Plate, Ge, 45º

 100232013

  Flat Plate, Ge, 45º

 100232023

  Trough Plate, Ge, 30º

 100232033

  Flat Plate, Ge, 30º

 100232043

  Trough Plate, Ge, 60º

 100232053

  Flat Plate, Ge, 60º

 100232046

  Trough Plate, AMTIR, 45º

 100232047

  Flat Plate, AMTIR, 45º

 100232002

  Trough Plate, KRS-5, 45º

 100232012

  Flat Plate, KRS-5, 45º

 100232022

  Trough Plate, KRS-5, 30º

 100232032

  Flat Plate, KRS-5, 30º

 100232042

  Trough Plate, KRS-5, 60º

 100232052

  Flat Plate, KRS-5, 60º

 100232044

  Trough Plate, Si, 45º

 100232045

  Flat Plate, Si, 45º



.  Pressure Clamp



 Part Number

  Description

 100233050

  ATRMax Pressure Clamp



.  Sampling Options



 Part Number

  Description

 100232800

  Automated Upgrade for ATRmax II

 100232850

  Automated Option for ATRmax II

 100232300

  RCPlate for ATRmax II

 100234000

  ATRMax Flow Cell Assembly (order Crystal seperately)

 100234100

  ATRMax Liquid-jacketed Flow-Through Cell Assembly (order crystal seperately)

 100234200

  ATRMax Heated Flow-Through Cell Assembly (order Crystal seperately)

 100234300

  ATRMax Heated Trough Plate Assembly (order Crystal seperately)

 100234400

  ATRMax Heated Flat Plate Assembly (order Crystal separately)

 100134200

  ATR Variable Angle Heating Conversion Plate

 100761610

  Digital Temperature Control Module

 100070207

  PIKE TemPRO Software





.  Crystals



 Part Number

  Description

 101605563

  Crystal, 45º, Trap., 56 x 10 x 4 mm, ZnSe

 101605571

  Crystal, 60º, Trap., 56 x 10 x 4 mm, ZnSe

 101605569

  Crystal, 30º, Trap., 56 x 10 x 4 mm, Ge

 101605565

  Crystal, 45º, Trap., 56 x 10 x 4 mm, Ge

 101605573

  Crystal, 60º, Trap., 56 x 10 x 4 mm, Ge

 101605570

  Crystal, 30º, Trap., 56 x 10 x 4 mm, Si

 101605567

  Crystal, 45º, Trap., 56 x 10 x 4 mm, Si

 101605575

  Crystal, 60º, Trap., 56 x 10 x 4 mm, Si

 101605566

  Crystal, 45º, Trap., 56 x 10 x 4 mm, AMTIR

 101605574

  Crystal, 60º, Trap., 56 x 10 x 4 mm, AMTIR



.  Replacement Parts



 Part Number

  Description

 100233051

  ATRMax II Volatiles Cover

 100233052

  ATRMax II Powder Press
