장비명
µMAX Microscope
측정방식
투과, 반사, Ge ATR
측정샘플
이물, 고장분석 등 미소부위 초점 측정
특 징
Dichroic Optic사용
적용장비
FTIR

µMAX Microscope



.  제조사에 관계없이 연결가능한 적외선 현미경

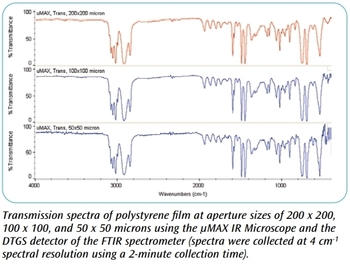

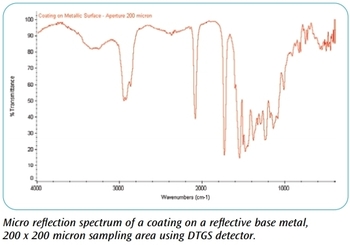

.  투과, 반사 및 Ge ATR Mode, 20 x 50mm Manual Stage

.  IR빔의 경로길이를 최소화하여 우수한 신호대잡음비 제공

.  Simultaneous View and Spectrum Collection

.  50 Watt Kohler Illumination

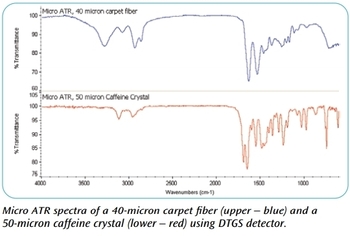

.  Micro ATR: RotATR with 100 micron tip, Pibor pinned-in-place and easily removable for maximum sample area access. Universal Ge Crystal for amalysis of all micro samples

.  Visible Field of View: 1600 microns

.  Visible Image Contrast: Better than 1 micron



기본구성

.  10034-21XX Complete µMAX Sample Compartment IR Microscope with Transmission, Reflection, Ge ATR and Video camera

.  10034-41XX Complete µMAX Sample Compartment IR Microscope for Reflection, Ge ATR and Video camera (Transmission 불가능)



Options & Replacement Parts






.  Micro ATR



 Part Number

  Description

 10034-3040

  RotATR, µmax ATR, Ge Crystal



.  Microsampling Options



 Part Number

  Description

 10034-3060

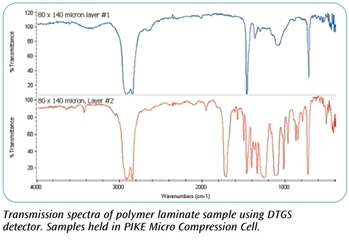

  Micro Compression Cell for 13-mm IR transparent windows

 10160-1135

  Window, KBr, 13 x 2mm

 10162-0030

  Micro Plane, carbide blade

 10162-0040

  Micro Plane, Diamond Blade

 10162-0010

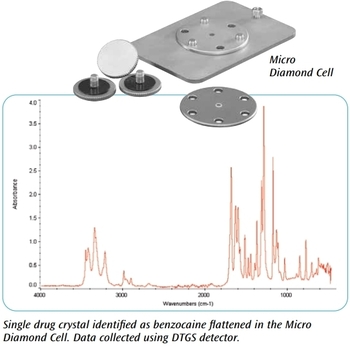

  Micro Diamond Cell, 1.6 mm

 10162-0020

  Micro Diamond Cell, 2.0 mm

 10162-0045

  Micro TouchPick Pen Set includes pen with tip size 0.62mm and 0.17mm, scalpel/roller knife, cleaning compound and holder case

 10162-0046

  Diamond Window, 2.5 mm

 10162-0047

  Diamond Window, 3.5 mm

 10162-0048

  Micro Vice-Mini

 10034-0923

  Micro Roller Knife



.  IR Microscope Upgrades



 Part Number

  Description

 10034-0090

  µmax IR Microscope Transmission Upgrade



.  IR Micorscope Replacement Parts



 Part Number

  Description

 10300-0025

  Gold-Surfaced Disk, 13mm, for Reflection analysis

 10034-3070

  IR Microsampling Kit includes 3 position sample slide with gold mirror, 2 KBr windows, scissiors, tweezers, probes and roller knife with replacement blades

 10162-6401

  3 position sample slide for 13mm windows

 10300-0002

  Gold surfaced sample slide 1" x 3"

 10034-3080

  Replacement illumination bulb for µmax



.  Microsampling Tools



 Part Number

  Description

 10034-3060

  Micro Compression Cell (requires selection of two 13 x 2 mm windows)

 10160-1135

  Window, KBr, 13 x 2mm

 10160-1008

  Windows, KBr, 13 x 2mm

 10162-0030

  Micro Plane, Carbide blade

 10162-0040

  Micro Plane, Diamond blade

 10162-0045

  Micro TouchPick Pen Set Includes pen with tip size 0.62 mm and 0.17 mm

 10162-0048

  Micro Vice-Mini

 10162-0046

  Diamond Window, 2.5mm aperture

 10162-0047

  Diamond Window, 3.5mm aperture

 10162-6401

  3 Position Sample Slide (recommended selection of window or disk)

 10300-0025

  Gold-Surfaced Mirror, 13 x 2mm

 10034-3070

  IR Microsampling Kit Includes 3 Position sample slide with gold mirror, 2 KBr windows, scissors, tweezers, probes and roller knife with replacement blades)

 10034-0923

  Micro Roller Knife















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
