제품소개

장비명
Beam Condensers
측정방식
투과 Transmission
측정샘플
미소 샘플 Micro size sample
특 징
4X, 6X Beam 투과 악세사리
크기/무게
W 165 x D 242 x H 114 mm (4X) / W 165 x D 318 x H 114 mm (6X)
적용장비
FTIR

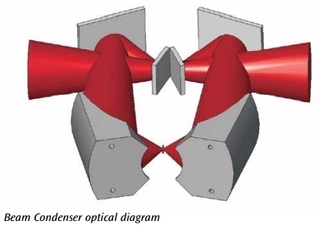

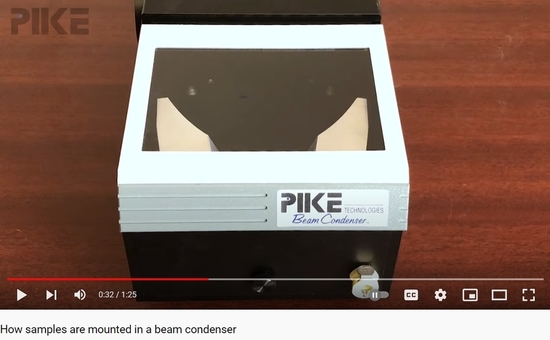

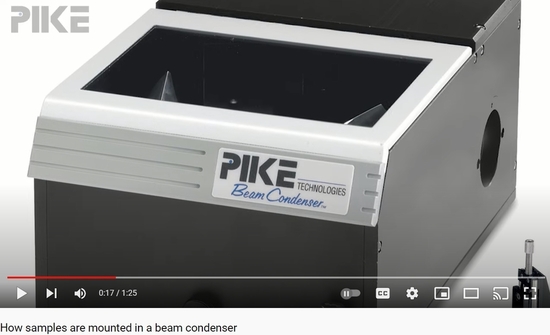

Beam Condensors



.  마이크로 샘플링을 위한 4X, 6X Versions Beam Condensors

.  mid-IR 또는 near-IR 작업에서 표준 또는 금코팅된 광학 장치와 함께 쓰임

.  최소한의 샘플 준비로 손쉬운 투과 샘플링을 제공

.  Optics: All Reflective, Aluminum (Standard), Gold-Coated (Optional)

.  Configurations: 4X and 6X demagnifications

.  Sampling Options: Standard Sample Holders, X. Y, Z Adjustable Stage, Pressure Diamond Cells and Micro Holders



기본구성

.  10031-40XX 4X Beam Condensor includes the Non-Adjustable Sample Position Stage, 1.5 mm Alignment aperture, Purge tubes and mount for the FTIR of your selection

.  10031-60XX 6X Beam Condensor includes the Non-Adjustable Sample Position Stage, 1.5 mm Alignment aperture, Purge tubes and mount for the FTIR of your selection

.  Sample Position Sample Stage, Sample Holders 등 선택 가능



선택구성

.  Adjustable Sample Position



 Part Number

  Description

 10031-2010

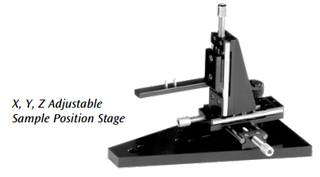

  X, Y, Z Adjustable Sample Position Stage



.  Sample Holders





 Part Number

  Description

 10031-2030

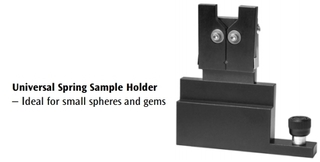

  Universal Spring Sample Holder

 10031-2040

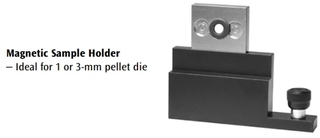

  Magnetic Sample Holder

 10031-2050

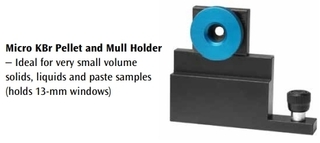

  Micro KBr Pellet and Mull Holder



.  Micro Diamond Cell



 Part Number

  Description

 10162-0010

  Micro Diamond Cell, 1.6mm

 10162-0020

  Micro Diamond Cell, 2.0mm

 10031-2070

  Mounting Stage for Micro Diamond Cell



.  Beam Condensor Replacement Parts



 Part Number

  Description

 10031-2020

  Non-Adjustable Sample Position Stage
