장비명

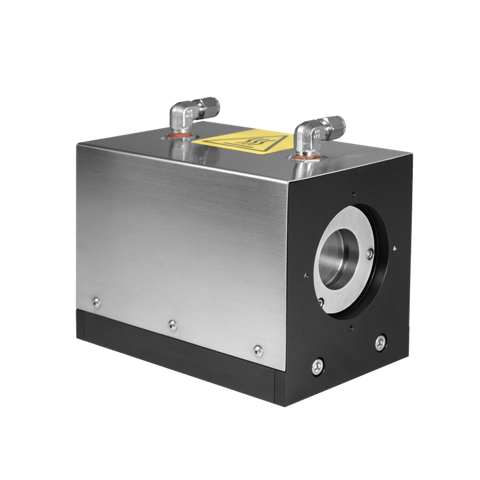

TGA/ FTIR Accessory
측정방식
열중량 분석
측정샘플
가스
특 징
가스 정량 측정
크기/무게
W 91 x D 140 x H 121 mm
적용장비
FTIR, TGA

TGA/ FTIR Accessory



.  열 중량 분석기 (TGA)에서 FTIR 분광기로 진화 된 가스 분석을 위한 인터페이스 설계

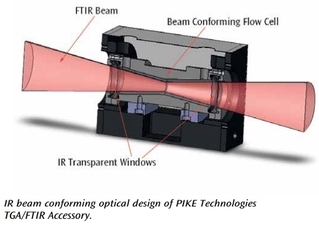

.  FTIR 최대 감도를 위한 100mm IR Beam 경로길이

.  일반적으로 낮은 milligram 범위의 샘플 질량에서 정성 및 정량 측정을 수행함

.  User-changable IR transparent windows

.  Temperature Range: Ambient to 300°C



기본구성

.  1016224XX TGA/FTIR Accessory Flow Cell includes mount for your FTIR, exhaust line and high-temperature O-rings

.  Windows, Heated Transfer Line, Temperature Controllers 등 선택 필요



선택구성

.  IR Transparent Windows (2개 이상 선택 필요)



 Part Number

  Description

 101601320

  Window, KBr, 38x6 mm

 101601329

  Window, ZnSe, 38x6 mm



.  Heated Transfer Line (1개 이상 선택 필요)



 Part Number

  Description

 101150001

  Heated transfer line for Shimadzu TGA50 includes evolved gas port modifications

 101150005

  Heated transfer line for mettler 851 TGA

 101150006

  Heated transfer line for mettler 851e/LF or TGA-DSC1/2/3 TGA

 101150007

  Heated transfer line for TA instruments Q600 TGA

 101150008

  Heated transfer line for TA instruments Discovery/Q5000R

 101150009

  Heated transfer line for TA instruments Q50/Q500 TGA

 101150010

  Heated transfer line for TA instruments 2050/2950

 101150011

  Heated transfer line for Netzsch TGA

 101150012

  Heated transfer line for PESTA6/4000 110V TGA

 101150013

  Heated transfer line for SETARAM

 101150014

  Heated transfer line for PESTA6/4000 220V TGA

 101150017

  TGA Universal transfer line includes the following adapters; 1/8" to 1/8" union, 1/4" to 1/8" reducing union, 3mm to 1/8" union, 6mm to 1/8" reducing union and 6mm PTFE ferrules

 101150018

  PTFE TGA Transfer line, 230°C max. Recommended for TGAs with evolved gas ports made of ceramic or moving furnace heads



.  Temperature Controllers (1개 이상 선택 필요)



 Part Number

  Description

 100761120

  Dual Digital Temperature Control Module

 100761130

  4 Zone Digital Temperature Control Module for Shimadzu TGA



.  Replacement Parts and Options



 Part Number

  Description

 101622309

  High-Temperature O-Rings, max temp 325°C

 101622308

  High-Temperature O-Rings, max temp 325°C
