제품소개

장비명
UV-Vis DiffusIR
측정방식
Diffuse reflectance
측정샘플
난반사가 일어나는 고체 샘플, 분말
특 징
촉매 및 반응 연구
크기/무게
W 102 x D 225 x H 201 mm
적용장비
UV-Vis

UV-Vis DiffusIR



.  일상적 측정과 연구를 위한 악세사리

.  촉매 및 반응 연구를 위해 고온 및 저온 환경 챔버 용으로 구성 가능

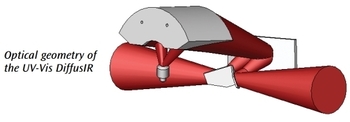

.  Optical Design: 3X ellipsoidal

.  입사각: 30도

.  Sample Focus: Micrometer

.  Sample Positions: 2 positions, slide stoops for background and sample with no purge loss

.  Sample Cups: Micro 6 x 1.6 mm deep / Macro: 10 x 2.3 mm deep



Environmental Chamber Specifications

.  Temperature Range, HTV: Ambient to 500 or 1000°C

.  Temperature Range, LTV: -150 to 500°C

.  Heating Rate, Maximum: Up to 120°C / minute, HTV

.  Window Size: 32 x 3mm disk

.  Leaking rate: < 6.0 x 10-11 pa m3/sec

.  Sample Cup size: 6.0mm OD, 4.0mm height / 4.7mm ID, 2.0mm depth



기본구성

.  1004110XXX UV-Vis DiffusIR Accessory includes sample preparation kit with 2 micro and 2 macro sample cups, sample loading tools, alignment mirror, 35mm mortar with pestle and KBr powder

.  Temperature Control Modules 등 선택 가능



선택구성

.  Options



 Part Number

  Desciption

 101624150

  UV-Vis DiffusIR Environmental Chamber, HTV, ambient to 500°C

 101624200

  UV-Vis DiffusIR Environmental Chamber, HTV, ambient to 1000°C

 101624140

  UV-Vis DiffusIR Environmental Chamber, LTV, -150 to 500°C



.  Temperature Control Modules



 Part Number

  Description

 100762550

  Digital Temperature Control Module

 100070207

  PIKE TempPRO Software

 101624165

  Liquid Nitrogen-Cooled System and Temperature Control Module DiffusIR Environmental Chamber, LTV, -150 to 500°C



.  Replacement parts and Supplies



 Part Number

  Description

 101701100

  Liquid Recirculator

 100422010

  Sample Cup, Micro, 6mm diameter, 1.6mm deep

 100422020

  Sample Cup, Macro, 10mm diameter, 2.3mm deep

 100423010

  Abrasion Sampling kit

 100423020

  Abrasion Disks, silicon carbide

 100423025

  Abrasion Disks, diamond

 100423030

  Sample cup holder and base

 101608010

  KBr powder, 100g

 100423040

  Sample preparation kit

 100423060

  Flat sample post

 100423080

  Alignment mirror, aluminum

 101624303

  Rotary pump for vacuum insulation



.  Replacement Parts and Supplies



 Part Number

  Description

 101601132

  Disk, KBr, 32x3mm

 101601113

  Disk, ZnSe, 32x3mm

 101601372

  Disk, UV-Vis SiO2, 32x3mm

 101605049

  Disk, SiO2, 32x3mm

 101605125

  Disk, low OH SiO2, 32x3mm

 101601143

  Disk, CaF2, 32x3mm

 101604210

  O-Ring for UV-Vis DiffusIR chamber

 101624215

  O-Ring for UV-Vis DiffusIR chamber cooling line

 101624251

  Ceramic Cup for UV-Vis DiffusIR chamber, porous

 101624270

  Alignment Mirror for UV-Vis DiffusIR chamber
