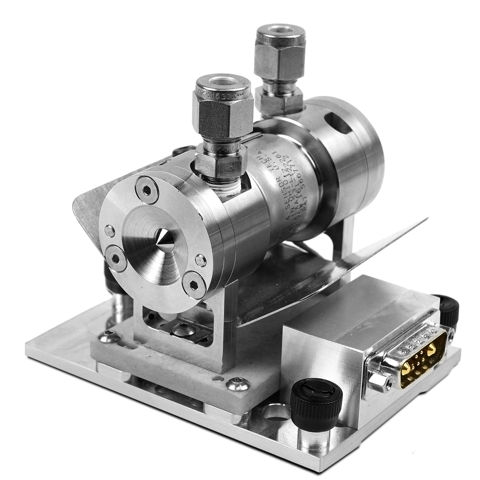

Jetstream ATR



.  Optimized for analysis of liquids in static or flow modes at varying pressure

.  작은 샘플 챔버로 효율적인 샘플링 제공

.  정성 및 정량분석

.  Temperature control: Up to 200 °C

.  Pressures up to 1500 psi

.  ATR Crystals: ZnSe or Ge

.  Crystal size: 82mm x 6.4mm

.  Crystal face angle: 45°

.  Number of reflections: 12

.  Cell volume: 1.3mL

.  Liquid Connectors: 316 Stainless Steel Swagelok



기본구성

.  10020-19XX JetStream ATR base optics assembly

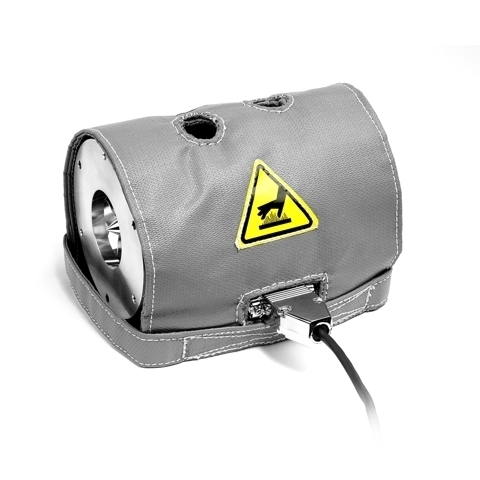

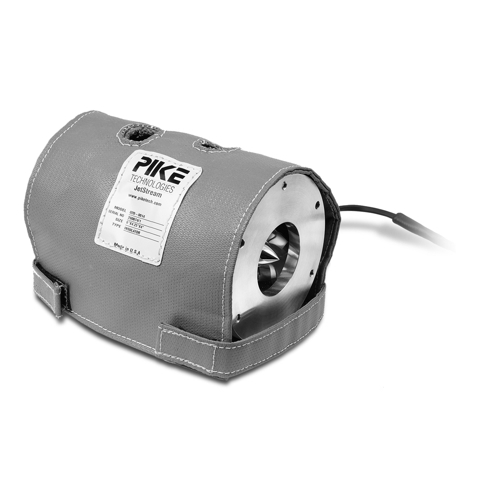

.  10020-18XX Heated JetStream ATR base optics assembly

.  ATR Crystals 등 선택 필요



선택구성

.  ATR Crystals



Part Number	Description
10160-5578	ZnSe Rod
10160-5579	Ge Rod



.  Temperature controller



Part Number	Description
10076-1610	Digital Temperature control module

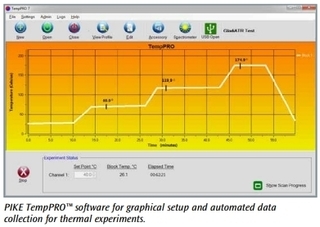

10007-0207	Pike TemPRO software



.  Replacement parts



Part Number	Description
10020-3040	EPDM Cystal O-Rings, 120°C max
10020-3041	EPDM Housing O-Rings, 120°C max
10020-3045	Perfluoroelastomer Crystal O-Rings
10020-3046	Perfluoroelastomer Housing O-Rings











제품 관련 영상
