장비명
10Spec
측정방식
Specular reflection
측정샘플
유리표면, AR코팅된 표면, 다양한 반사표면 등
특 징
입사각 10도
크기/무게
Standard: W 159 x D 90 x H 118 mm / Extended Height: W 159 x D 90 x H 205mm
적용장비
FTIR

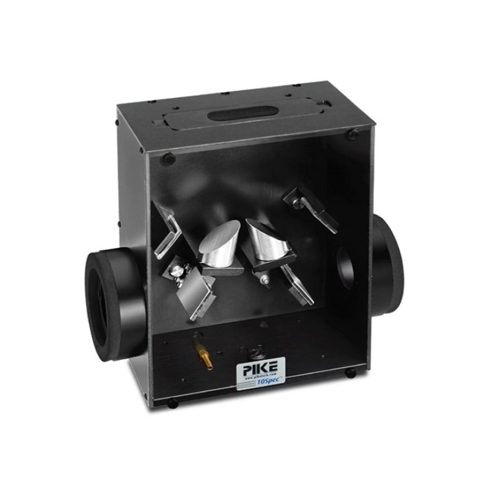

10Spec



.  고정 입사각 10도

.  Measure sample reflectance

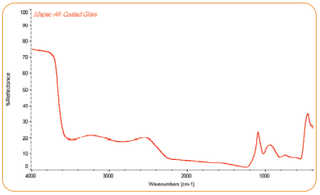

.  Military devices, reflecting optics, anti-reflective (AR) coated surfaces, and other reflecting and non-reflecting materials 포함한 다양한 표면의 near-normal reflectivity을 측정하는 데 사용됨

.  두 가지 버전으로 사용됨: Standard - 118mm tall, Extended Height - 205mm tall

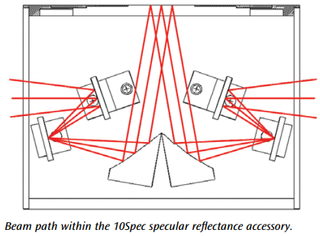

.  Optics: All reflective

.  Sample masks: 2", 5/8" and 3/8"

.

기본구성

.  10010-10XX 10Spec - 10 Degree Specular Reflectance Accessory includes 3 sample masks (2", 5/8" and 3/8"), gold substrate alignment mirror and FTIR base mount

.  10010-11XX Extended height 10Spec Accessory includes 3 sample masks (2", 5/8" and 3/8"), gold substrate alignment mirror and FTIR base mount



선택구성

.  10Spec Replacement parts and sampling options



 Part Number

  Description

 10010-3010

  Specular Mask Set

 10300-0002

  Gold Substrate Alignment mirror, 1.25 x 3.0"

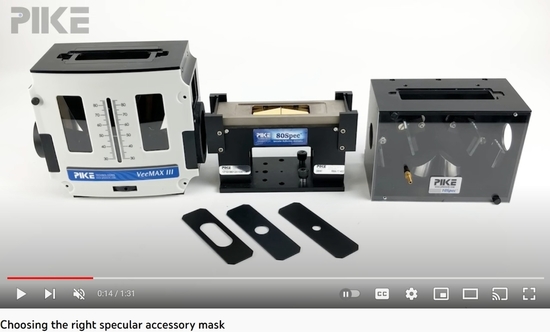

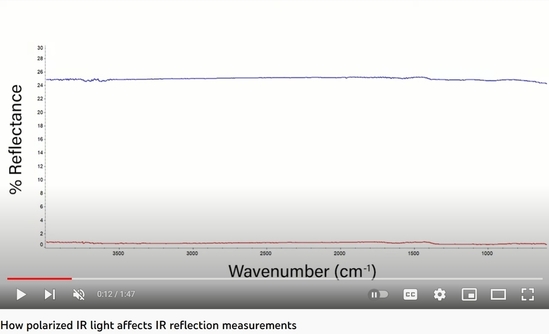

제품 관련 영상



















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
