제품 상세보기

제품 상세보기

장비명
Quest ATR
측정방식
Single reflection
측정샘플
다양한 고체, 액체 샘플
특 징
Monolithic Crystal
크기/무게
W 150 x D 150 x H 180 mm / 1.6kg
적용장비
FTIR

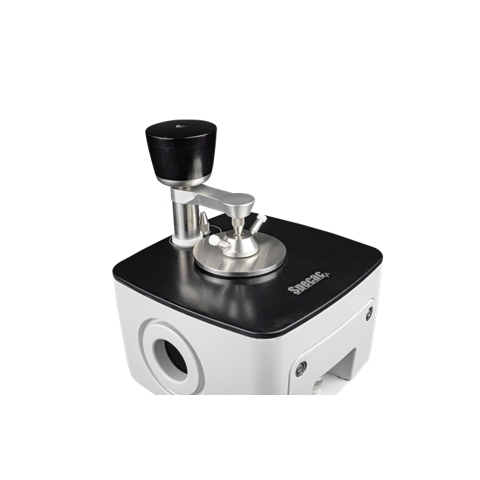

Quest Single Reflection ATR



.  Monolithic diamond

.  Crystal 종류: Diamond, Extened Range Diamond, ZnSe, Ge, Si

.  mid-, far-infrared

.  Specular 입사각 45도

.  Optics: All reflective



기본구성

.  15GS10800X Quest ATR Diamond

.  15GS10801X Quest ATR Diamond-Extended Range

.  15GS10802X Quest ATR ZnSe

.  15GS10803X Quest ATR Ge

.  ATR Puck 선택 가능

.  Top plate color 선택 가능



선택구성

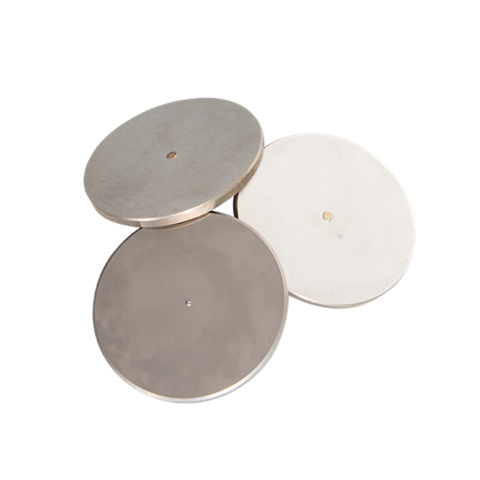

.  Quest ATR Puck only



 Part Number

  Description

 15GS10810

  Quest ATR Diamond Crystal Puck

 15GS10811

  Quest ATR Diamond Extended Range Crystal Puck

 15GS10812

  Quest ATR ZnSe Crystal Puck

 15GS10813

  Quest ATR Ge Crystal Puck

 15GS10816

  Quest ATR Specular Refelectance Puck

 15GS10819

  Quest ATR Si Crystal Puck



.  Spares and Accessories



 Part Number

  Description

 15GS10820

  Quest ATR Stainless Steel Flat Anvil

 15GS10821

  Quest ATR Stainless Steel Pellet Anvil

 15GS10825

  Quest ATR Volatiles Cover

 15GS10707

  Purge bellows



.  Arrow Silicon ATR Consumable



 Part Number

  Description

 15GS10885

  Arrow Starter Kit

 15GS10884

  Arrow Starter Kit with Quest ATR accessory

 15GS10883

  Replacement Arrow puck for Quest

 15GS10882

  Arrow Refill Pack



.  Physical properties of the ATR Crystals



Crystal

Refractive Index

Depth of Penetration/ ㎛

Spectral range/ cm-1

 ZnSe

  2.40

  2.01

  7800 - 500

 Diamond

  2.40

  2.01

  7800 - 400

 Extended  Diamond

  2.40

  2.01

  10000 - 40

 Ge

  4.00

  0.66

  5500 - 480

 Si

  3.42

  0.90

  8,333 - 100

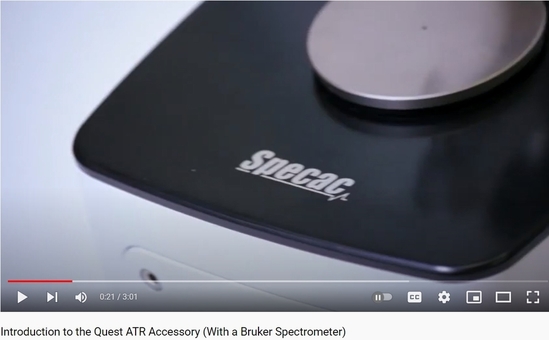

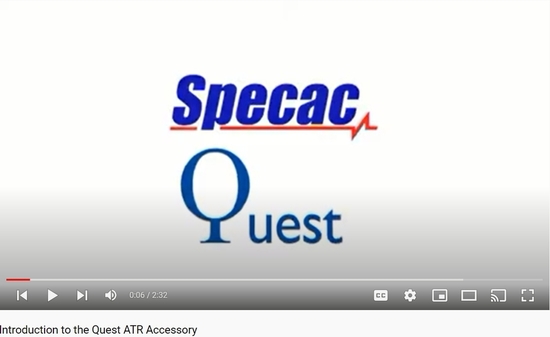

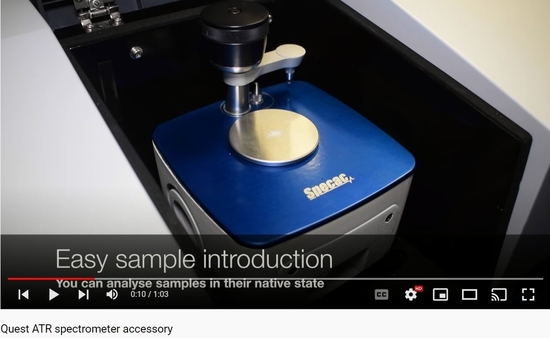

제품 관련 영상















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
