제품 상세보기

제품 상세보기

장비명
Omni-Cell Liquid Transmission System
측정방식
투과 Transmission
측정샘플
액체, 뮬, 페이스트
특 징
Demountable cell, Sealed cell, Mull cell 구성
적용장비
FTIR

Omni-Cell System



.  Liquid, mull 분석

.  Demountable liquid cells / Sealed liquid cells / Mull cells로 구성

.  샘플 및 파장 범위에 따라 Window material, Pathlength, Window configuration가 결정됨

.  Pathlengths from 0.006 mm to 1.00 mm

.  다양한 Windows 선택

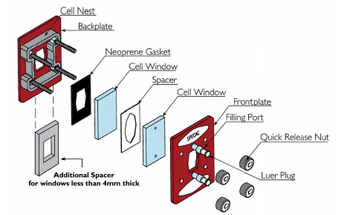

Demountable Cell

.  다양한 두께의 spacer를 사용하여 cell pathlength 길이 변경 가능

.  쉽게 분해되어 세척하기 어려운 샘플에 적합함

.  범용

.  모든 액체

.  정량 분석

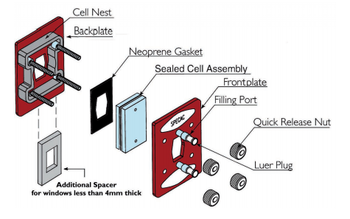

Sealed Cell

.  한 쌍의 window와 spacer가 고정적으로 합쳐짐

.  정량분석에 이상적인 일정한 경로길이

.  휘발성 액체, 저점도 액체

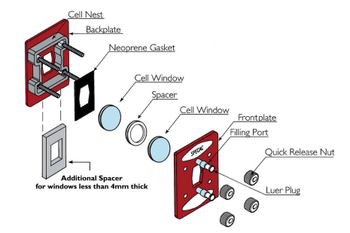

Mull Cell

.  일반적인 liquid filling ports를 사용하지 않으며 2개의 원형 창 사이에 샘플을 놓고 본체 부품을 조여 함께 압착

.  다양한 두께의 Spacer를 사용하여 Cell Pathlength 길이 변경 가능

.  고점도 액체, 젤, 페이스트, 오일, 윤활유 분석



기본구성

.  15GS01800 The Omni-Cell Body includes front and back plates, cell nest, 4 quick release nuts, bonded front PTFE gasket, rear neoprene gasket and 2 PTFE Luer plugs

.  Window pairs, Spacers, Window Units 등 선택 필요



선택구성

.  Liquid Omni-Cell Volumes



  Liquid Omni-Cell Volumes (Rectangular windows - top drilled, bottom undrilled)

  Mylar spacer 0.006mm thick - 1.82 microliters

  Mylar spacer 0.012mm thick - 3.64 microliters

  Mylar or lead spacer 0.025mm thick - 7.5 microliters

  PTFE or lead spacer 0.05mm thick - 15.50 microliters

  PTFE or lead spacer 0.10mm thick - 30.00 microliters

  PTFE or lead spacer 0.20mm thick - 60.00 microliters

  PTFE or lead spacer 0.50mm thick - 150.00 microliters

  PTFE or lead spacer 1.00mm thick - 300.00 microliters



.  Demountable Liquid Omni-Cell Window Pairs (Rectangular) 41mm x 23mm



 Part Number

  Description

 15GS01810

  NaCl Liquid Omni Windows

 15GS01811

  KBr Liquid Omni Windows

 15GS01812

  CaF2 Liquid Omni Windows

 15GS01813

  BaF2 Liquid Omni Windows

 15GS01814

  ZnSe Liquid Omni Windows

 15GS01815

  KRS-5 Liquid Omni Windows

 15GS01818

  Silica (IR) Liquid Omni Windows

 15GS01819

  AgBr Liquid Omni Windows

 15GS01820

  Silicon Liquid Omni Windows

 15GS01821

  Polythene Liquid Omni Windows



.  Liquid Omni-Cell Spacers (Rectangular)



 Part Number

  Description

 15GS01850

  0.05mm PTFE Spacers

 15GS01851

  0.10mm PTFE Spacers

 15GS01852

  0.20mm PTFE Spacers

 15GS01853

  0.50mm PTFE Spacers

 15GS01854

  1.00mm PTFE Spacers

 15GS01855

  0.025mm Lead Spacers

 15GS01856

  0.05mm Lead Spacers

 15GS01857

  0.10mm Lead Spacers

 15GS01858

  0.20mm Lead Spacers

 15GS01859

  0.50mm Lead Spacers

 15GS01860

  1.00mm Lead Spacers

 15GS01861

  0.006mm Mylar Spacers

 15GS01862

  0.012mm Mylar Spacers

 15GS01863

  0.025mm Mylar Spacers

 15GS01864

  Assorted PTFE Spacers



.  Mull Omni-Cell Window Pairs (Circular) 25mm Dia



 Part Number

  Description

 15GS01830

  NaCl Mull Omni Windows

 15GS01831

  KBr Mull Omni Windows

 15GS01832

  CaF2 Mull Omni Windows

 15GS01833

  BaF2 Mull Omni Windows

 15GS01834

  ZnSe Mull Omni Windows

 15GS01835

  KRS-5 Mull Omni Windows

 15GS01838

  Silica (IR) Mull Omni Windows

 15GS01839

  AgBr Mull Omni Windows

 15GS01840

  Silicon Mull Omni Windows

 15GS01841

  Polythene Mull Omni Window



.  Mull Omni-Cell Spacers



 Part Number

  Description

 15GS01870

  0.05mm PTFE Spacers

 15GS01871

  0.10mm PTFE Spacers

 15GS01872

  0.20mm PTFE Spacers

 15GS01873

  0.50mm PTFE Spacers

 15GS01874

  1.00mm PTFE Spacers

 15GS01875

  0.025mm Lead Spacers

 15GS01876

  0.05mm Lead Spacers

 15GS01877

  0.10mm Lead Spacers

 15GS01878

  0.20mm Lead Spacers

 15GS01879

  0.50mm Lead Spacers

 15GS01880

  1.00mm Lead Spacers

 15GS01881

  0.006mm MylarSpacers

 15GS01882

  0.012mm Mylar Spacers

 15GS01883

  0.025mm Mylar Spacers



.  Permanently Selaed Omni-Cell Window Units (Rectangular with Lead Spacer)



  Material

  0.025mm

  0.05mm

  0.10mm

  0.20mm

  0.50mm

  1.00mm

  NaCl

 15GS01910

 15GS01920

 15GS01930

 15GS01940

 15GS01950

 15GS01960

  KBr

 15GS01911

 15GS01921

 15GS01931

 15GS01941

 15GS01951

 15GS01961

  CaF2

 15GS01912

 15GS01922

 15GS01932

 15GS01942

 15GS01952

 15GS01962

  BaF2

 15GS01913

 15GS01923

 15GS01933

 15GS01943

 15GS01953

 15GS01963

  ZnSe

 15GS01914

 15GS01924

 15GS01934

 15GS01944

 15GS01954

 15GS01964

  KRS-5

 15GS01915

 15GS01925

 15GS01935

 15GS01945

 15GS01955

 15GS01965

  Csl

 15GS01916

 15GS01926

 15GS01936

 15GS01946

 15GS01956

 15GS01966

  CsBr

 15GS01917

 15GS01927

 15GS01937

 15GS01947

 15GS01957

 15GS01967

  Silica (IR)

 15GS01918

 15GS01928

 15GS01938

 15GS01948

 15GS01958

 15GS01968



.  Spacers



 Part Number

  Description

 15GS01110

  Luer Syringe

 15GS01890

  Rear Neoprene Gaskets

 15GS01891

  Quick Release Nuts

 15GS01892

  Luer Plugs for Omni-Cell

 15GS01893

  Spacer for thin windows

 15GS03620

  Bottle of Nujol

 15GS03621

  Bottle of Fluoroube



.  Liquid Transmission Windows



Omni-Cell Circular windows



 Part Number

  Description

 15GS01839

  AgBr Omni-Cell windows circular

 15GS01833

  BaF2 Omni-Cell windows circular

 15GS01832

  CaF2 Omni-Cell windows circular

 15GS01838

  Fused Silica Omni-Cell windows circular

 15GS01831

  KBr Omni-Cell windows circular

 15GS01835

  KRS-5 Omni-Cell windows circular

 15GS01830

  NaCl Omni-Cell windows circular

 15GS01841

  Polythene Omni-Cell windows circular

 15GS01871

  PTFE Omni-Cell spacers circular

 15GS01840

  Silicon Omni-Cell windows circular

 15GS01834

  ZnSe Omni-Cell windows circular



Omni-Cell Rectangular Windows



 Part Number

  Description

 15GS01819

  AgBr Omni-Cell windows rectangular

 15GS01813

  BaF2 Omni-Cell windows rectangular

 15GS01812

  CaF2 Omni-Cell windows rectangular

 15GS01818

  Fused Silica Omni-Cell windows rectangular

 15GS01811

  KBr Omni-Cell windows rectangular

 15GS01815

  KRS-5 Omni-Cell windows rectangular

 15GS01810

  NaCl Omni-Cell windows rectangular

 15GS01821

  Polythene Omni-Cell windows rectangular

 15GS01820

  Silicon Omni-Cell windows rectangular

 15GS01814

  ZnSe Omni-Cell windows rectangular



Sealed Omni-Cell Windows



 Part Number

  Description

 15GS01913

  BaF2 0.025mm sealed window

 15GS01923

  BaF2 0.05mm sealed window

 15GS01933

  BaF2 0.10mm sealed window

 15GS01943

  BaF2 0.20mm sealed window

 15GS01953

  BaF2 0.50mm sealed window

 15GS01963

  BaF2 1.00mm sealed window

 15GS01912

  CaF2 0.025mm sealed window

 15GS01922

  CaF2 0.05mm sealed window

 15GS01932

  CaF2 0.10mm sealed window

 15GS01942

  CaF2 0.20mm sealed window

 15GS01952

  CaF2 0.50mm sealed window

 15GS01962

  CaF2 1.00mm sealed window

 15GS01918

  Fused Silica 0.025mm sealed window

 15GS01928

  Fused Silica 0.05mm sealed window

 15GS01938

  Fused Silica 0.10mm sealed window

 15GS01948

  Fused Silica 0.20mm sealed window

 15GS01958

  Fused Silica 0.50mm sealed window

 15GS01968

  Fused Silica 1.00mm sealed window

 15GS01911

  KBr 0.025mm sealed window

 15GS01921

  KBr 0.05mm sealed window

 15GS01931

  KBr 0.10mm sealed window

 15GS01941

  KBr 0.20mm sealed window

 15GS01951

  KBr 0.50mm sealed window

 15GS01961

  KBr 1.00mm sealed window

 15GS01925

  KRS-5 0.05mmm sealed window

 15GS01915

  KRS-5 0.025mm sealed window

 15GS01935

  KRS-5 0.10mm sealed window

 15GS01945

  KRS-5 0.20mm sealed window

 15GS01955

  KRS-5 0.50mm sealed window

 15GS01965

  KRS-5 1.00mm sealed window

 15GS01910

  NaCl 0.025mm sealed window

 15GS01920

  NaCl 0.05mm sealed window

 15GS01930

  NaCl 0.10mm sealed window

 15GS01940

  NaCl 0.20mm sealed window

 15GS01950

  NaCl 0.50mm sealed window

 15GS01960

  NaCl 1.00mm sealed window

 15GS01914

  ZnSe 0.025mm sealed window

 15GS01924

  ZnSe 0.05mm sealed window

 15GS01934

  ZnSe 0.10mm sealed window

 15GS01944

  ZnSe 0.20mm sealed window

 15GS01954

  ZnSe 0.50mm sealed window

 15GS01964

  ZnSe 1.00mm sealed window

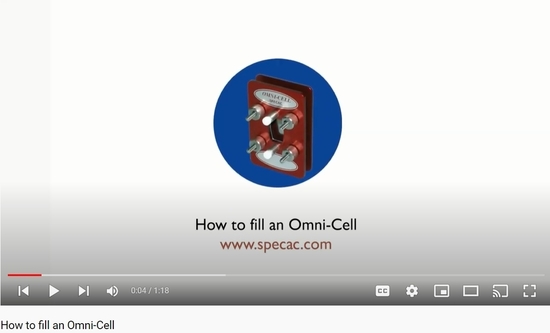

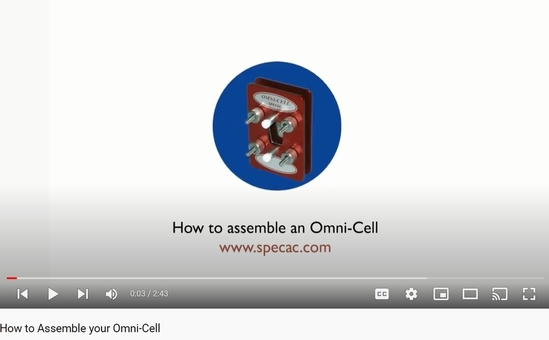

제품 관련 영상

















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
