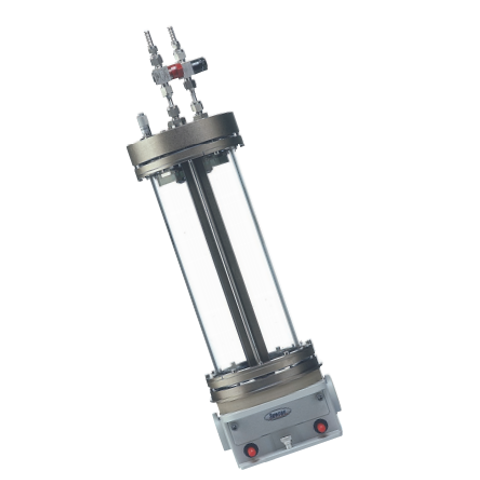

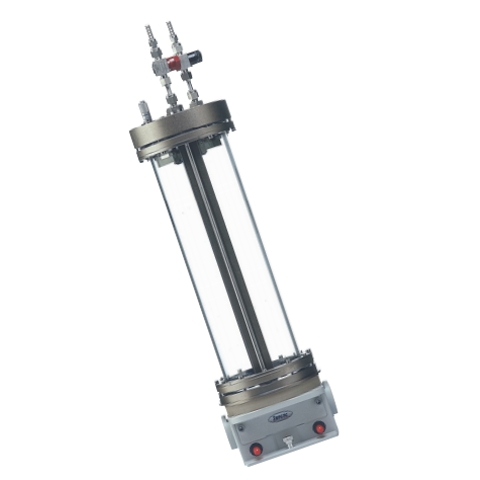

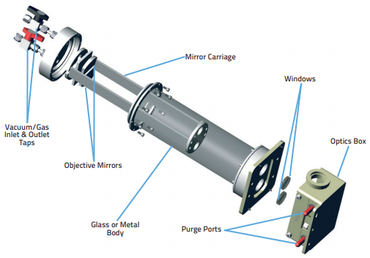

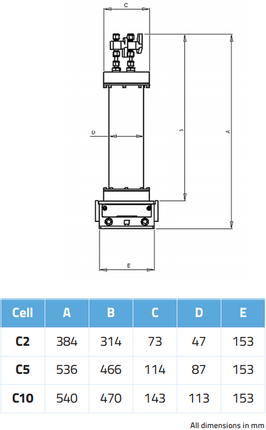

Cyclon C2, C5, C10 Gas Cell



Model	C2	C5 or	C10 or	C20 or
		T5	T10	T20
Pathlength settings (m)	0.5—2.5	1.0—8.0	2.1—10.6	2.0—20.0
	in 0.5 m steps	in 1.0 m steps	in 1.06 m steps	in 2.0 m steps
Base pathlength (mm)	125	250	264	500
Number of passes	4—20	4—32	8—40	4—40
Volume (L)	0.19	1.33	2.6	4.3



.  Pressure range: Vacuum to 15psi (optional 125 psi)

.  Mirrors: Gold

.  Windows: KBr (optional ZnSe or CaF2)

.  Ambient temperature



기본구성

.  GS24102GCAV Cyclone C2 Gas Cell: Glass Body, CaF2 Windows, Adjustable Pathlength

.  GS24102GCFV Cyclone C2 Gas Cell: Glass Body, CaF2 Windows, Fixed Pathlength

.  GS24102GKAV Cyclone C2 Gas Cell: Glass Body, KBr Windows, Adjustable Pathlength

.  GS24102GKFV Cyclone C2 Gas Cell: Glass Body, KBr Windows, Fixed Pathlength

.  GS24102GZAV Cyclone C2 Gas Cell: Glass Body, ZnSe Windows, Adjustable Pathlength

.  GS24102GZFV Cyclone C2 Gas Cell: Glass Body, ZnSe Windows, Fixed Pathlength

.  GS24102MCAV Cyclone C2 Gas Cell: Metal Body, CaF2 Windows, Adjustable Pathlength

.  GS24102MCFV Cyclone C2 Gas Cell: Metal Body, CaF2 Windows, Fixed Pathlength

.  GS24102MZAV Cyclone C2 Gas Cell: Metal Body, ZnSe Windows, Adjustable Pathlength

.  GS24102MZFV Cyclone C2 Gas Cell: Metal Body, ZnSe Windows, Fixed Pathlength



.  15GS24105GCAV Cyclone C5 Gas Cell: Glass Body, CaF2 Windows, Adjustable Pathlength

.  15GS24105GCFV Cyclone C5 Gas Cell: Glass Body, CaF2 Windows, Fixed Pathlength

.  15GS24105GKFV Cyclone C5 Gas Cell: Glass Body, KBr Windows, Fixed Pathlength

.  15GS24105GZAV Cyclone C5 Gas Cell: Glass Body, ZnSe Windows, Adjustable Pathlength

.  15GS24105GZFV Cyclone C5 Gas Cell: Glass Body, ZnSe Windows, Fixed Pathlength

.  15GS24105MCAV Cyclone C5 Gas Cell: Metal Body, CaF2 Windows, Adjustable Pathlength

.  15GS24105MCFV Cyclone C5 Gas Cell: Metal Body, CaF2 Windows, Fixed Pathlength

.  15GS24105MZAV Cyclone C5 Gas Cell: Metal Body, ZnSe Windows, Adjustable Pathlength

.  15GS24105MZFV Cyclone C5 Gas Cell: Metal Body, ZnSe Windows, Fixed Pathlength



.  15GS24110GCAV Cyclone C10 Gas Cell: Glass Body, CaF2 Windows, Adjustable Pathlength

.  15GS24110GCFV Cyclone C10 Gas Cell: Glass Body, CaF2 Windows, Fixed Pathlength

.  15GS24110GKAV Cyclone C10 Gas Cell: Glass Body, KBr Windows, Adjustable Pathlength

.  15GS24110GKFV Cyclone C10 Gas Cell: Glass Body, KBr Windows, Fixed Pathlength

.  15GS24110GZAV Cyclone C10 Gas Cell: Glass Body, ZnSe Windows, Adjustable Pathlength

.  15GS24110GZFV Cyclone C10 Gas Cell: Glass Body, ZnSe Windows, Fixed Pathlength

.  15GS24110MCAV Cyclone C10 Gas Cell: Metal Body, CaF2 Windows, Adjustable Pathlength

.  15GS24110MCFV Cyclone C10 Gas Cell: Metal Body, CaF2 Windows, Fixed Pathlength

.  15GS24110MZAV Cyclone C10 Gas Cell: Metal Body, ZnSe Windows, Adjustable Pathlength

.  15GS24110MZFV Cyclone C10 Gas Cell: Metal Body, ZnSe Windows, Fixed Pathlength

.  Windows, Pathlength, Heating jacket 등 선택 필요



선택구성

.  Cyclone Heating Jacket





Part Number	Description
15GS24302	Heating Jacket + Temperature Controller for Cyclone C2 Gas Cell
15GS24305	Heating Jacket + Temperature Controller for Cyclone C5 Gas Cell
15GS24310	Heating Jacket + Temperature controller for the Cyclone C10 gas cell



.  Options



Part Number	Description
15GS10707	Purge Bellows
15GS24150	Desiccant Storage Caps
15GS24152	Mirror Carriage Assembly
15GS24160	Pressure Gauge Kit
15GS24302	Heating Jacket/Controller for C2
15GS24305	Heating Jacket/Controller for C5
15GS24310	Heating Jacket/Controller for C10
15GS28000	RS232 Connection Kit
15GS28001	USB Connection Kit
15GS28002	RS485 Connection Kit
15GS24500	Laser Alignment Accessory
15GS24153	Replacement KBr Windows
15GS24154	Replacement ZnSe Windows
15GS24155	Replacement CaF2 Windows
15GS24103	Cyclone Gas Cell C2 ESK
15GS24106	Cyclone Gas Cell C5, C10, ESK



.  Gas FTIR Trasmission Spares



Part Number	Description
15GS24103	Essential Spares Kit for Cyclone Gas Cell C2
15GS24106	Essential Spares Kit for Cyclone C5, C10 and C20 Gas Cells
15GS24160	Pressure Gauge Kit for Cyclone + Tornado Gas Cells
15GS24150	Cyclone + Tornado Gas Cell Desicant Storage Caps
