제품소개

장비명

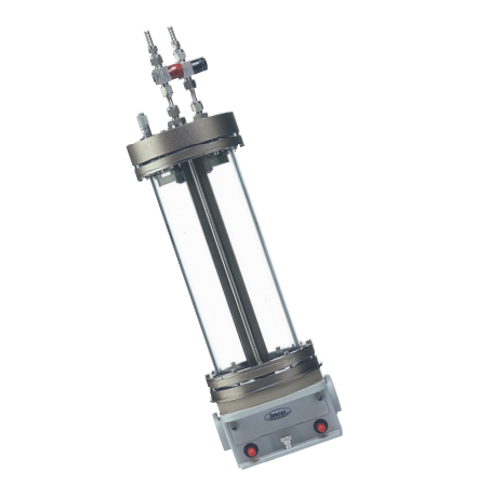

Cyclone C5 Gas Cells
측정방식
투과 Transmission
측정샘플
가스
특 징
고정 및 가변 경로길이

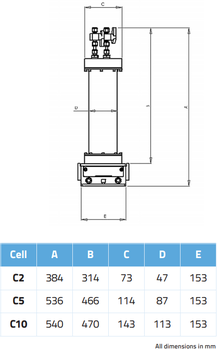

크기/무게
W 153 x D 130 x H 536 mm
적용장비
FTIR

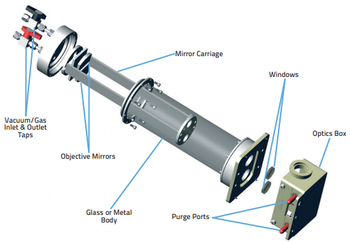

Cyclon C5 Gas Cell



.  Pathlength range: 1m - 8m (Fixed or Adjustable)

.  Pathlength steps: 1m

.  Base Pathlength: 25cm

.  Volume: 1.33 Liters

.  Number of passes: 4 - 32

.  Pressure range: Vacuum to 15psi (optional 125 psi)

.  Mirrors: Gold

.  Windows: KBr (optional ZnSe or CaF2)

.  Ambient temperature



기본구성

.  15GS24105GCAV Cyclone C5 Gas Cell: Glass Body, CaF2 Windows, Adjustable Pathlength

.  15GS24105GCFV Cyclone C5 Gas Cell: Glass Body, CaF2 Windows, Fixed Pathlength

.  15GS24105GKFV Cyclone C5 Gas Cell: Glass Body, KBr Windows, Fixed Pathlength

.  15GS24105GZAV Cyclone C5 Gas Cell: Glass Body, ZnSe Windows, Adjustable Pathlength

.  15GS24105GZFV Cyclone C5 Gas Cell: Glass Body, ZnSe Windows, Fixed Pathlength

.  15GS24105MCAV Cyclone C5 Gas Cell: Metal Body, CaF2 Windows, Adjustable Pathlength

.  15GS24105MCFV Cyclone C5 Gas Cell: Metal Body, CaF2 Windows, Fixed Pathlength

.  15GS24105MZAV Cyclone C5 Gas Cell: Metal Body, ZnSe Windows, Adjustable Pathlength

.  15GS24105MZFV Cyclone C5 Gas Cell: Metal Body, ZnSe Windows, Fixed Pathlength

.  Windows, Pathlength, Heating jacket 등 선택 필요



선택구성

.  Cyclone Heating Jacket





 Part Number

  Description

 15GS24302

  Heating Jacket + Temperature Controller for Cyclone C2 Gas Cell

 15GS24305

  Heating Jacket + Temperature Controller for Cyclone C5 Gas Cell

 15GS24310

  Heating Jacket + Temperature controller for the Cyclone C10 gas cell



.  Options



 Part Number

  Description

 15GS10707

  Purge Bellows

 15GS24150

  Desiccant Storage Caps

 15GS24152

  Mirror Carriage Assembly

 15GS24160

  Pressure Gauge Kit

 15GS24302

  Heating Jacket/Controller for C2

 15GS24305

  Heating Jacket/Controller for C5

 15GS24310

  Heating Jacket/Controller for C10

 15GS28000

  RS232 Connection Kit

 15GS28001

  USB Connection Kit

 15GS28002

  RS485 Connection Kit

 15GS24500

  Laser Alignment Accessory

 15GS24153

  Replacement KBr Windows

 15GS24154

  Replacement ZnSe Windows

 15GS24155

  Replacement CaF2 Windows

 15GS24103

  Cyclone Gas Cell C2 ESK

 15GS24106

  Cyclone Gas Cell C5, C10, ESK
