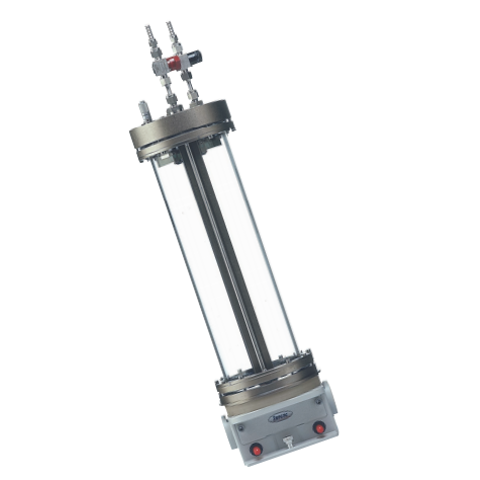

Cyclon C10 Gas Cell



.  Pathlength: 2.1m - 10.6m (Fixed or Adjustable)

.  Pathlength steps: 1.06m

.  Volume: 2.61 Litters

.  Base pathlength: 26.4cm

.  Number of passes: 8 - 40

.  Pressure range: Vacuum to 15psi (optional 125psi)

.  Mirrors: Gold

.  Windows: KBr (optional ZnSe or CaF2)

.  Ambient temperature



기본구성

.  15GS24110GCAV Cyclone C10 Gas Cell: Glass Body, CaF2 Windows, Adjustable Pathlength

.  15GS24110GCFV Cyclone C10 Gas Cell: Glass Body, CaF2 Windows, Fixed Pathlength

.  15GS24110GKAV Cyclone C10 Gas Cell: Glass Body, KBr Windows, Adjustable Pathlength

.  15GS24110GKFV Cyclone C10 Gas Cell: Glass Body, KBr Windows, Fixed Pathlength

.  15GS24110GZAV Cyclone C10 Gas Cell: Glass Body, ZnSe Windows, Adjustable Pathlength

.  15GS24110GZFV Cyclone C10 Gas Cell: Glass Body, ZnSe Windows, Fixed Pathlength

.  15GS24110MCAV Cyclone C10 Gas Cell: Metal Body, CaF2 Windows, Adjustable Pathlength

.  15GS24110MCFV Cyclone C10 Gas Cell: Metal Body, CaF2 Windows, Fixed Pathlength

.  15GS24110MZAV Cyclone C10 Gas Cell: Metal Body, ZnSe Windows, Adjustable Pathlength

.  15GS24110MZFV Cyclone C10 Gas Cell: Metal Body, ZnSe Windows, Fixed Pathlength

.  Windows, Heated jackets, Temperature controller 선택 가능



선택구성

.  Cyclone Heating Jacket





Part Number	Description
15GS24302	Heating Jacket + Temperature Controller for Cyclone C2 Gas Cell
15GS24305	Heating Jacket + Temperature Controller for Cyclone C5 Gas Cell
15GS24310	Heating Jacket + Temperature controller for the Cyclone C10 gas cell



.  Options



Part Number	Description
15GS10707	Purge Bellows
15GS24150	Desiccant Storage Caps
15GS24152	MirrorCarriageAssembly
15GS24160	Pressure Gauge Kit
15GS24302	Heating Jacket/Controller
15GS24305	Heating Jacket/Controller
15GS24310	Heating Jacket/Controller
15GS28000	RS232 Connection Kit
15GS28001	USB Connection Kit
15GS28002	RS485 Connection Kit
15GS24500	Laser Alignment Accessory
15GS24153	Replacement KBr Windows
15GS24154	Replacement ZnSe Windows
15GS24155	Replacement CaF2 Windows
15GS24103	Cyclone Gas Cell C2 ESK
15GS24106	Cyclone Gas Cell C5, C10, ESK
