장비명

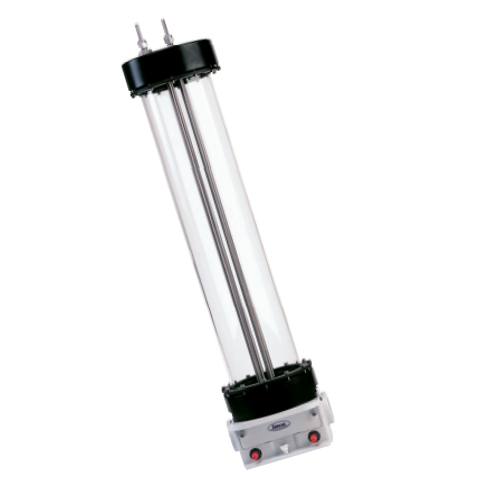

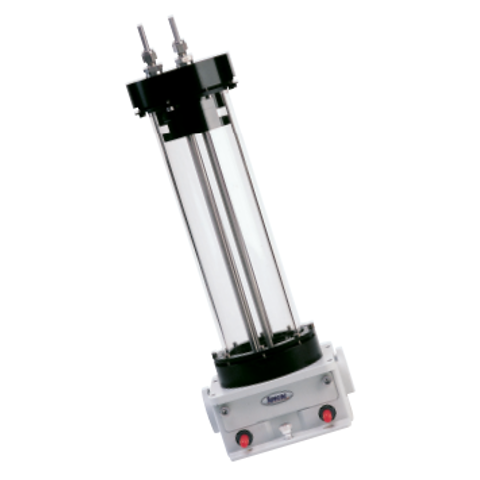

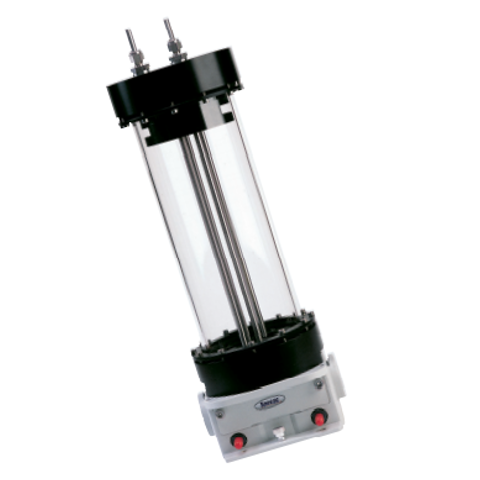

Tornado T5 - T20 Gas Cell
측정방식
투과 Transmission
측정샘플
가스
특 징
고정 경로길이

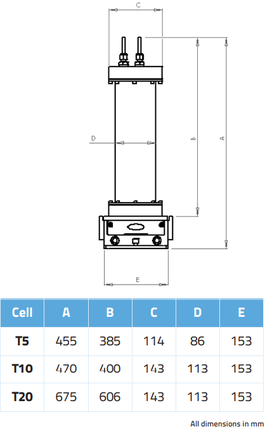

크기/무게
T5:W 153 x D 130 x H 455 mm / T10:W 153 x D 146 x H 470 mm / T20:W 153 x D 146 x H 675 mm
적용장비
FTIR

 Torando T5, T10, T20 Gas Cell





Model

T5

T10

T20

Pathlength settings (m)

1m - 8m in 1m steps

2.1m -10.6m in 1.06m steps

2m - 20m in 2m steps

Base Pathlength (cm)

25

26.4

0.5

Number of passes

4 - 32

8 - 40

4 - 40

Volume (L)

1.33

2.6

4.7

.  Pressure range: Vacuum to 15psi

.  Mirrors: Gold

.  Windows: KBr, ZnSe or CaF2

.  Ambient temperature



기본구성

.  15GS24205 Tornado T5

.  15GS24210 Tornado T10

.  15GS24220 Tornado T20

.  Options, Replacement windows 선택 가능



선택구성

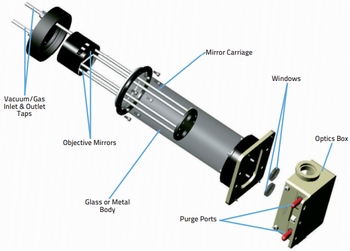

.  15GS24252 Mirror Carriage Assembly





.  Options



 Part Number

  Description

 15GS10707

  Purge Bellows

 15GS24150

  Desiccant Storage Caps

 15GS24152

  Mirror Carriage Assembly

 15GS24160

  Pressure Gauge Kit

 15GS24161

  Vacuum/Gas Inlet & Outlet Taps

 15GS24206

  Tornado Gas Cell T5 ESK

 15GS24207

  Tornado Gas Cell T10, T20 ESK



.  Replacement windows



 Part Number

  Description

 15GS24153

  Replacement KBr Windows

 15GS24154

  Replacement ZnSe Windows

 15GS24155

  Replacement CaF2 Windows
