장비명

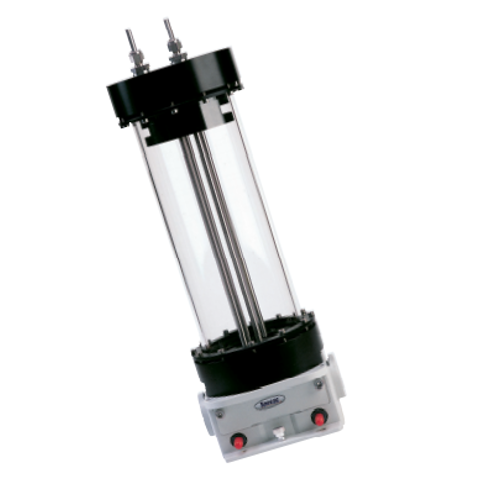

Tornado T10 Gas Cell
측정방식
투과 Transmission
측정샘플
가스
특 징
고정 경로길이

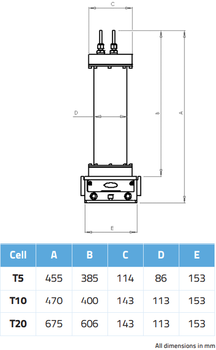

크기/무게
W 153 x D 146 x H 470 mm
적용장비
FTIR

Tornado T10 Gas Cell



.  Pathlength (Fixed): 2.1m - 10.6m

.  Pathlength steps: 1.06m

.  Volume: 2.6 Liters

.  Base Pathlength: 26.4cm

.  Number of passes: 8 - 40

.  Pressure range: Vacuum to 15psi

.  Mirrors: Gold

.  Windows: KBr, ZnSe or CaF2

.  Ambient temperature



기본구성

.  15GS24210 Tornado T10

.  Options, Replacement windows 선택 가능



선택구성

.  15GS24252 Mirror Carriage Assembly





.  Options

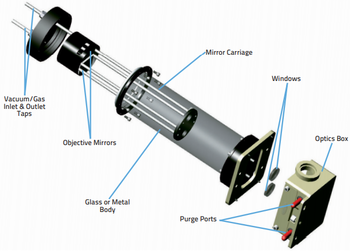

 Part Number

  Description

 15GS10707

  Purge Bellows

 15GS24150

  Desiccant Storage Caps

 15GS24152

  Mirror Carriage Assembly

 15GS24160

  Pressure Gauge Kit

 15GS24161

  Vacuum/Gas Inlet & Outlet Taps

 15GS24206

  Tornado Gas Cell T5 ESK

 15GS24207

  Tornado Gas Cell T10, T20 ESK



.  Replacement windows



 Part Number

  Description

 15GS24153

  Replacement KBr Windows

 15GS24154

  Replacement ZnSe Windows

 15GS24155

  Replacement CaF2 Windows
