제품소개

제품소개

장비명
Apex Quick Release Die
측정방식
투과 Transmission
측정샘플
다양한 분말
특 징
32, 40mm 펠렛 제조

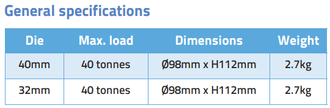

크기/무게
W 98 x H 112 mm / 2.7kg
적용장비
FTIR, XRF

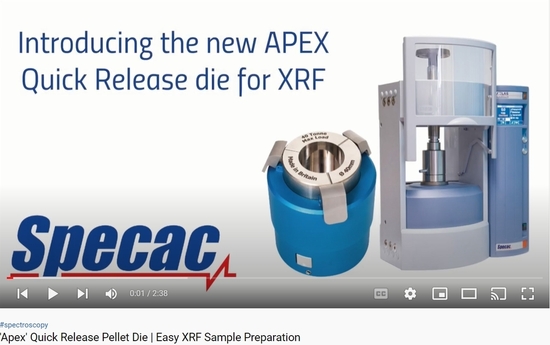

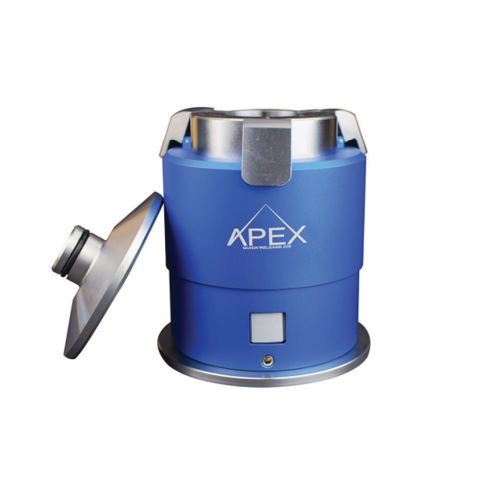

Apex Quick Release Die



.  32mm, 40mm 펠렛 제조

.  Max load: 40 tons

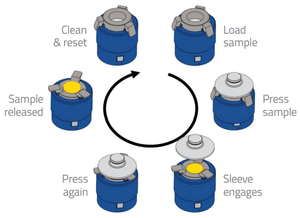

.  조립 또는 분해가 필요하지 않음

.  Atlas Autotouch press와 함께 pressing process의 완전한 자동화



기본구성

.  15GS26301 40mm Apex Quick Release Die with top pressing anvil and base locator plate for 8T, 15T, 25T

.  15GS26302 32mm Apex Quick Release Die with top pressing anvil and base locator plate for 8T, 15T, 25T

.  15GS26303 40mm Apex Quick Release Die with top pressing anvil and base locator plate for 40T

.  15GS26304 32mm Apex Quick Release Die with top pressing anvil and base locator plate for 40T



선택구성

.  Spares and Accessories



 Part Number

  Description

 15GS26325

  Die body for 40mm APEX Quick Release Die

 15GS26326

  Die body for 32mm APEX Quick Release Die

 15GS26321

  Plunger for 40mm APEX Quick Release Die

 15GS26322

  Plunger for 32mm APEX Quick Release Die

 15GS26310

  Top pressing anvil assembly of APEX Dies for 40T Autotouch Press

 15GS26311

  Top pressing anvil assembly of APEX Dies for the 15T/25T Manual and 8T/15T/25T Power/ Autotouch Presses

 15GS26315

  Top Stainless Steel Polished plate 40mm dia

 15GS26316

  Top Stainless Steel Polished plate 32mm dia

 15GS26330

  Base locator plate for APEX Dies

 15GS26340

  Spring for APEX Dies

 15GS26341

  Essential spares kit for Apex Dies
