장비명
Atmos Heatable Long Pathlength Gas Cells
측정방식
투과 Transmission
측정샘플
가스
특 징
2.5 ~ 20m Fixed Pathlength
적용장비
FTIR

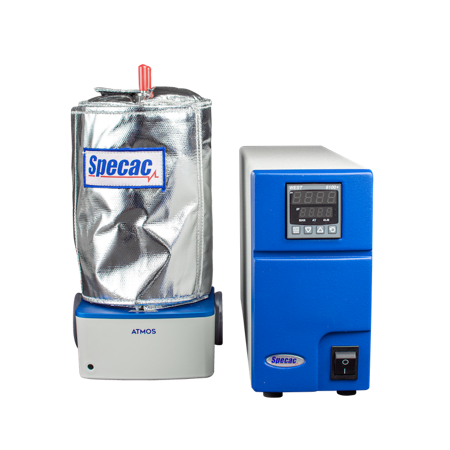

Atmos Heatable Long Pathlength Gas Cells



.  Vacuum to 125 psi operation

.  Wide pathlength range (2.5 to 20m)

.  Maximum cell pressure: 125 psi

.  Up to 200 °C with Heating jacket

.  Gold mirrors (protected)

.  CaF2 or ZnSe windows



.  Atmos Cell Configuration

 Model

  A2.5

  A5

  A10

  A20

 Pathlength (m)

  2.5

  5.0

  10

  20

 Base Pathlength (mm)

  104

  139

  250

  455

 Number of passes

  24

  36

  40

  44

 Volume (L)

  0.27

  0.63

  2.12

  3.68



기본구성

.  15GS24602 Atmos A2.5

.  15GS24605 Atmos A5

.  15GS24610 Atmos A10

.  15GS24620 Atmos A20



선택구성

.  Ordering information



　

  A2.5

  A5

  A10

  A20

 Atmos Gas Cell including: CaF2 Windows and Viton seals

  15GS24602CV

  15GS24605CV

  15GS24610CV

  14GS24620CV

 CaF2 Windows and Kalrez seals

  15GS24602CX

  15GS24605CX

  15GS24610CX

  15GS24620CX

 ZnSe Windows and Viton seals

  15GS24602ZV

  15GS24605ZV

  15GS24610ZV

  15GS24620ZV

 ZnSe Windows and Kalrez seals

  15GS24602ZX

  15GS24605ZX

  15GS24610ZX

  15GS24620ZX

 Atmos Heating Jacket and controller (optional)

  15GS24651

  15GS24652

  15GS24653

  15GS24654

 Essential Spares Kit (ESK)

               15GS24625

               15GS24626

 Tap valve connections

                                        15GS24161

 Low- or High pressure gauge kit

                                        15GS24160

 Replacement windows (ZnSe)

                                        15GS24627

 Replacement windows (CaF2)

                                        15GS24628

 Replacement purge bellows

                                        15GS10707

 Laser Alignment Platform

                                        15GS24501

















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
