장비명

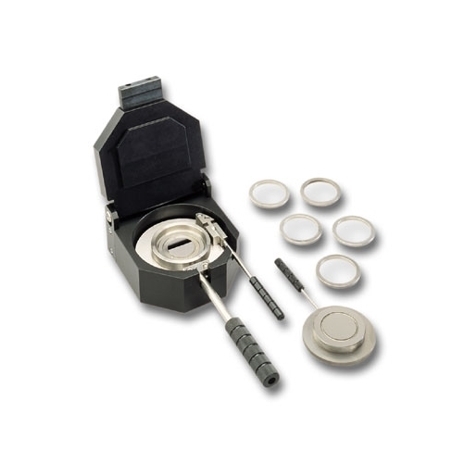

Precision Thickness Film Maker
측정방식
투과 Transmission
측정샘플
다양한 박막 필름
특 징
15 - 500 microns 두께의 필름 제조
적용장비
FTIR

Precision Thickness Film Maker



.  15, 25, 50, 100, 250 및 500 microns 두께의 폴리머 필름 제조

.  20 ton E-Z Press, 20 ton AIR-EZ 및 12 ton Mini "C" column press와 함께 사용 가능



기본구성

.  120012-4608 Precision Thickness Film Maker



선택구성



 Part Number

  Description

 120009-610

  Magnetic Film Holder With Circular 3/4"(19mm) diameter aperture

 120012-6664

  Water Cooled4"Diameter Heated Platen With Digital Temperature Controller

 120012-6631

  Film Maker Kit with film maker, Heated Platens & Temperature Controller and 20 ton E-Z press

 120012-4611

  Replacement Foil Discs

 120012-4609

  Replacement Polished Top Platen

 120012-4610

  Replacement Polished Bottom Platen

 120012-6681

  Auto Film Maker Kit

 120012-4656

  Film Maker Kit with film maker, 12 ton column press CHFM12 with thermostat controlled heated platens

 120012-8486

  Mirror Finish Polished 4" Dia. 316SS Plates

 120012-8803

  PTFE 4" Diameter Platens

 120012-8806

  PTFE 30mm Diameter Platens
