장비명

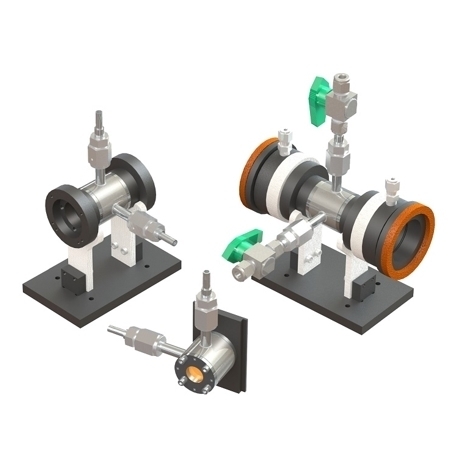

Mercury Single Pass Short Path Length Stainless Steel Specialty Gas Cells
측정방식
투과 Transmission
측정샘플
가스
특 징
100ppm 이상 농도 가스 측정
적용장비
FTIR

Mercury Single Pass Short Path Length Stainless Steel Specialty Gas Cells



.  Pathlength: 1cm, 2cm, 3cm, 5cm, 10cm and 15cm

.  순수 가스 및 일반적으로 100ppm 이상의 농도에 유용

.  Temperature Range ambient: 200°C

.  Pressure range Vacuum: 45psi

.  Cell Volume: 0.01L, 0.05L, 0.1L, 0.15L

.  Window size: 1cm - 25mm x 4mm / 5, 10, 15cm - 37.5mm x 4mm



기본구성

.  120008-9275 MERCURY SS GAS CELL-1CM PATH/ 0.01 L VOL-SINGLE PASS

.  120008-9274 MERCURY SS GAS CELL-5CM PATH/ 0.05 L VOL-SINGLE PASS

.  120008-9273 MERCURY SS GAS CELL-10CM PATH/ 0.1 L VOL-SINGLE PASS

.  120008-9272 MERCURY SS GAS CELL-15CM PATH/ 0.15L VOL-SINGLE PASS



선택구성



 Part Number

  Description

 120008-9276

  MERCURY SS GAS CELL-1 CM PATH/0.01 L VOL-SINGLE PASS - Slide Mounted

 120008-9277

  MERCURY SS GAS CELL-5 CM PATH/0.05 L VOL-SINGLE PASS - Slide Mounted

 120008-9278

  Optional Heater Jacket for Mercury or Venus Gas Cells

 120008-9279

  Spectrophotometer-Specific Interface for Gemini Mercury, Venus, Mars, Earth or Saturn Gas Cells

 120008-9280

  Replacement Valve Kit for Gemini Mercury, Venus, Mars, Earth or Saturn Gas Cells

 120017-5548

  High Stability PID Digital readout Temperature Controller, 115 volts

 120017-4804

  High Stability PID Digital readout Temperature Controller, 230 volts, CE marked

 120002J-9385

  Pair of 37.5 x 4mm ZnSe optics, wedged, one side AR coated
