제품 상세보기

제품 상세보기

장비명

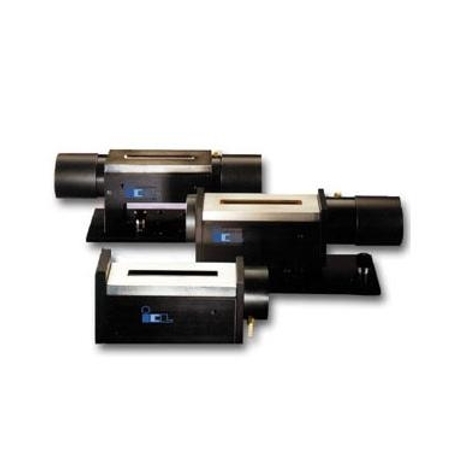

Basics Horizontal ATR
측정방식
Multiple reflection
측정샘플
액체, 페이스트, 필름, 파우더 등
적용장비
FTIR

Basics Horizontal ATR



.  액체, 페이스트, 필름 및 분말의 분석

.  샘플 준비 최소화

.  Flat top plate, Trough top plate 선택 가능

.  80 x 10 x 4mm ZnSe crystal, Ge 선택 가능



기본구성

.  120015-4713 Basics Horizontal ATR, trough plate with ZnSe ATR crystal prism

.  120015-4714 Basics Horizontal ATR, flat top plate with ZnSe ATR crystal prism with clamp assembly



선택구성



 Part Number

  Description

 120003J-6092

  ZnSe 80mm x 10mm x 4mm ATR Trapezoid, 45o

 120015-7687

  Recognition System add-on for any spectrophotometer, for use with the Basics Horizontal ATR

 120015-4715

  Trough Top Plate with ZnSe ATR Prism

 120015-4716

  Flat Top Plate with ZnSe ATR Prism

 120015-4717

  Powder Press for Trough Top Plate

 120015-4718

  Clamp for Flat Top Plate

 120015-4719

  Volatiles Cover

 120015-5023

  Heated ZnSe Trough Top Plate to 100°C

 120015-5096

  Heated Trough Top Plate Package

 120015-5024

  100 Microliter Flow-Through top plate

 120015-5343

  500 Microliter Flow-Through top plate

 120015-5098

  RS-232 or RS-485 communications interface for use of controller with personal computer
