장비명
Type 45 & 45-F. Flow cells. In-line or microscope analysis

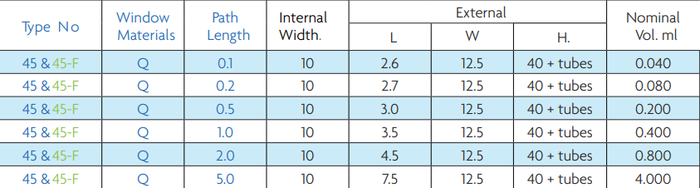

Pathlength
0.1 - 5.0mm
Window material
Q

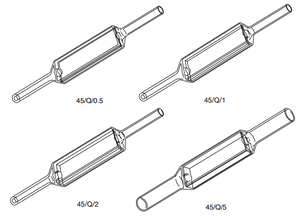

Type 45 & 45-F. Flow cells. In-line or microscope analysis



.  Type 45 two polished windows

.  Type 45-F has four polished windows

.  Tubes may be bent at angles to sample compartment if required

.  Up to 2mm Path length. Inlet/Outlet tubes - 2mm I.D., 4mm O.D. x 25mm long

.  Up to 5mm Path length. Inlet/Outlet tubes - 5mm I.D., 7mm O.D. x 25mm long



기본구성
