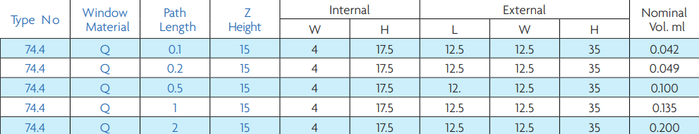

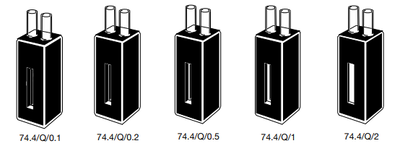

Type 74.4 Flow cells. Dissolution. Short path length, long aperture

.  Two polished windows

.  Path lengths of 0.5mm or less incorporate by-pass tubes to avoid back pressure and assist laminar flow through the sample compartment

.  Profiled sample compartment to optimise flow characteristics, reduces carry-over and bubble retention

.  Inlet/outlet tubes - 2 I.D, 4 O.D, 10mm long intended for push-on flexible tubing
