제품 상세보기

제품 상세보기

장비명
XY Autosampler
측정방식
Transmission, Diffuse reflectance
측정샘플
고체, 액체, 분말
특 징
24, 48, 96 well plates로 구성된 자동화분석
크기/무게
W 159 x D 336 x H 141 mm / 4.5kg
적용장비
FTIR

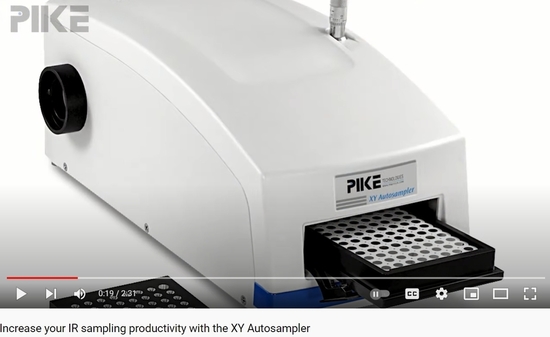

XY Autosampler



.  24, 48 or 96 well microplate architectures

.  Transmission or diffuse reflection sampling modes

.  Integrated DTGS or InGaAs detector

.  Optics: Elliptical - 3X beam demagnification

.  Resolution: 1µm

.  Minimum Run Time: 56 seconds for 96-well plate (actual time is spectrometer and application dependent)



기본구성

.  10047-21XX XY Autosampler Diffuse Reflectance



선택구성



 Part Number

  Description

 10047-61XX

  XY Autosampler Diffuse Reflectance with Gold-coated optics

 10047-22XX

  XY Autosampler Diffuse Reflectance / Transmission with integrated DTGS Detector

 10047-62XX

  XY Autosampler Diffuse Reflectance / Transmission with Gold-coated optics with integrated DTGS Detector

 10047-23XX

  XY Autosampler Diffuse Reflectance / Transmission with integrated InGaAs Detector

 10047-63XX

  XY Autosampler Diffuse Reflectance / Transmission with Gold-coated optics with integrated InGaAs Detector



.  Options



 Part Number

  Description

 10073-9110

  96 well Diffuse Reflectance Sampling Plate

 10073-9130

  96 well Si Transmission Sampling Plate

 10073-9160

  24 well Diffuse Reflectance Sampling Plate for Disposable cups

 10162-1920

  Disposable cups











제품 관련 영상















장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
