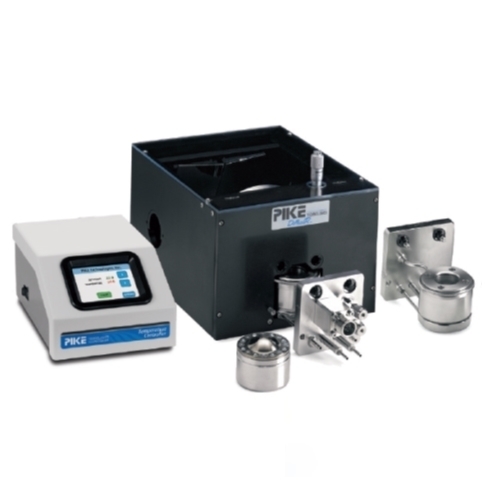

DiffuseIR Research Grade Diffuse Reflectance Accessory

. 고효율, Diffuse 측정시 Specular 반사를 최소화하는 optic (unique monolithic ellipsoidal reflector) 장착

. Powder sample 및 난반사가 일어나는 표면 측정시 최상의 결과 제공

. 촉매 반응 실험 (반응가스 주입, 온도 및 압력 조절)

. Optical Design: 3X ellipsoidal

. Incident angle: 30도

. Sample focis: Micrometer

. Window size: 32 x 3 mm disk (vacuum), 32mm ZnSe dome(pressure)

. Pressure maximum: 1500 psi with High-pressure adapter, 14.7psi using KBr window

기본구성

. 10041-10XX DiffusIR

선택구성

Part Number	Description
10170-1100	Liquid Recirculator
10042-2010	Sample Cup, micro, 6mm diameter, 1.6mm deep
10042-2020	Sample Cup, macro, 10mm diameter, 2.3mm deep
10042-3030	Sample Cup Holder and Base
10160-8010	KBr Powder
10042-3040	Sample Preparation Kit
10042-3010	Abrasion Sampling Kit
10042-3020	Abrasion Disks, silicon carbide
10042-3025	Abrasion Disks, diamond
10042-3060	Flat Sample Post
10042-3080	Alignment Mirror, aluminum
10042-3082	Alignment Mirror, gold
10162-4298	Rotary Pump for vacuum insulation, 115V
10162-4299	Rotary Pump for vacuum insulation, 230V
10160-1132	Disk, KBr, 32 x 3mm
10160-1113	Disk, ZnSe, 32 x 3mm
10160-1231	Disk, ZnSe, 32 x 3mm, with anti-reflective coating
10160-5049	Disk, SiO2, 32 x 3mm
10160-5125	Disk, SiO2, 32 x 3mm, low OH
10160-1159	Disk, Si, 32 x 3mm
10162-4210	O-Ring for DiffusIR Chamber
10162-4215	O-Ring for DiffusIR Chamber cooling line
10162-4251	Ceramic Cup for DiffusIR Chamber, porous
10162-4270	Alignment Mirror for DiffusIR Chamber
