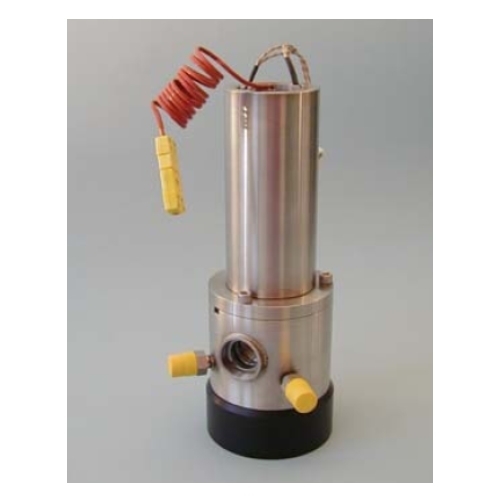

Transmission / Reflection Dewar
. 투과 또는 반사로 -196도에서 350도씨까지 온도조절하면서 측정할 수 있는 액세서리
. Chemically inert 316 stainless steel
. Cold finger for coolant (Liquid Nitrogen, Dry Ice + Acetone mixture etc.)
. Accommodates transmission or external reflection samples 25mm in diameter and up to 35mm in length, Optionals 13mm Pellet holder
. Uses one 25x2mm or 25x4mm window and one 32x3mm window
. Windows mount with O-ring seals (Viton or Kalrez)
. K-type thermocouple
. Two 1/4" 316 SS VCO fittings
