Demountable Liquid Cells (정량)

DLC2 PTFE Demountable Liquid Cells

. Various Spacers : 6, 12, 25, 56, 100, 150, 250, 390, 500, 630, 750, 950 micrometers

. Leak-Free Design

. Chemically resistant PTFE cell body and fittings

. 2개의 13x2mm 윈도우를 사용하며 Drilled Window는 필요하지 않음

. Static (Luer Lok Fittings) 또는 Flow (Flangeless Fittings) 방식

. Viton O-ring standard and Kalrez O-ring option

. Open Aperture Size : 8mm Diameter

. Standard Spacers : 25, 56, 100, 150, 250, 500 micrometers

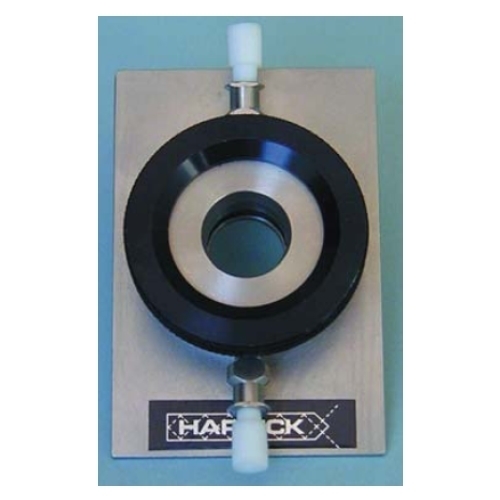

316 Stainless Steel Demountable Liquid Cells

. Chemially resistant 316 SS cell body

. Static Luer Lok fittings or Flow 1/8" Swagelok fittings

. 8mm Aperture Model : 2개의 13x2mm 윈도우 사용, Drilled Window 불필요

. 20mm Aperture Model : 2개의 25x2mm 윈도우 사용, Drilled Window 불필요

. Various Spacers : 6, 12, 25, 56, 100, 150, 250, 390, 500, 630, 750, 950 micrometers
