장비명
Temperature Controlled Demountable Liquid Cells (Harrick)
측정방식
투과, 온도조절 (-80도씨~260도씨)
측정샘플
액체, 온도/압력 조절
주요사양
Various Pathlength 6 ~ 1000 마이크로미터
주요사양
최대압력 660 psi with 8mm aperture model
적용장비
모든 FT-IR

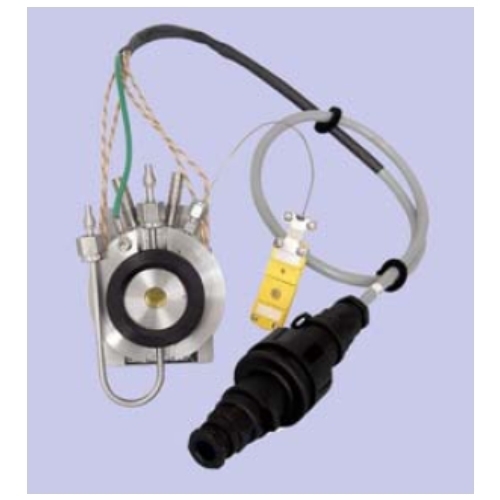

Temperature Controlled Demountable Liquid Cells



. Static (Luer Lok fittings) 또는 Flow (Swagelok fittings) Type

. Various Pathlength (Teflon Spacers) : 6, 12, 25, 56, 100, 150, 250, 390, 500, 630, 750, 950 micrometers

. Heatable to 200도씨 (Vition O-rings), 260도씨 (Kalrez O-rings)

. Coolable to -80도씨 with suitable coolant, purge and o-rings

. Thermally isolated cell body prevents heat transfer to the spectrometer

. Leak free design utilizes standard, non-drilled windows

. Chemically resistant 316 stainless steel cell body

. Maximum Operating Pressure with ZnSe Windows : 660 psi with 8mm aperture model, 100 psi wiht 20mm aperture model

. K-type thermocouple

. 20mm Aperture 모델은 25x2mm 윈도우 2개, 8mm Aperture 모델은 13x2mm 윈도우 2개 사용
