장비명
High Pressure Demountable Liquid Cells
측정방식
투과 Transmission
측정샘플
다양한 액체, 뮬
특 징
High Pressure cell: 5000 psi
적용장비
FTIR

High Pressure Demountable Liquid Cells



.  Various Pathlength : 6, 12, 25, 65, 100, 150, 250, 390, 500, 630, 750, 950µm

.  Up to 34.5 MPa (5000 psi)

.  8mm clear aperture, 13x6mm ZnS, ZnSe Window

.  Two ports with 1/8" Swagelok fittings for static and flow-through applications

.  Sample slide plate mounted

.  Two Models

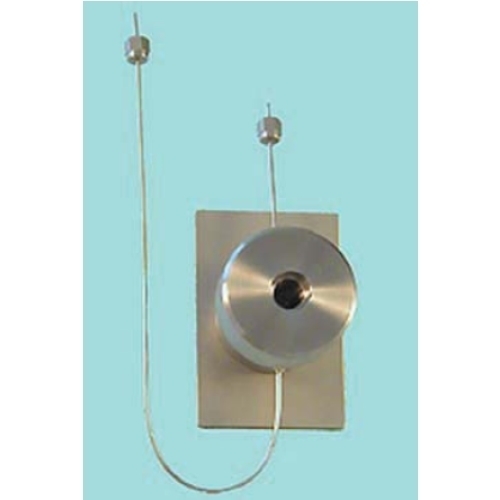

1.  High Pressure Liquid Transmission Cell for operation to 5000 psi

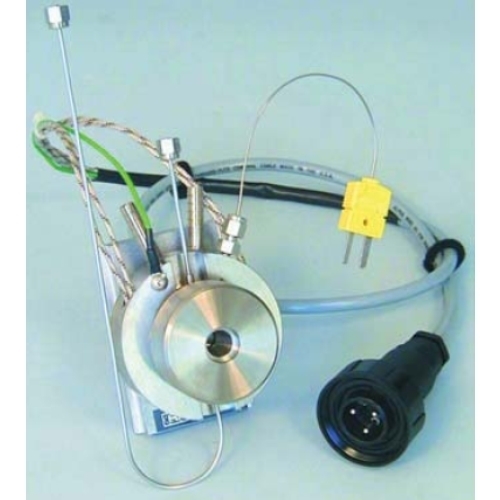

2.  Temperature controlled High Pressure Transmission Cell : Heatable to 200°C with Viton O-rings or 260°C with Kalrez O-rings, Thermally insulaed, Maximum pressure depends on operating temperature and window material



기본구성

.  11HPL-C-13 High Pressure Demountable Liquid Cell

.  11HPL-TC-13-3 TC High Pressure Demountable Liquid Cell
