장비명
The FatIR (The RangeIR + Safe Low Voltage Heater)
측정방식
Heated Single Bounce ATR, Dual K-type Thermocouple
측정샘플
Liquids, Pastes, Gels etc
특징
2개의 K-type thermocouple이 ATR크리스탈과 샘플의 온도를 동시에 측정
특징
Low Voltage Heater를 이용하여 175도까지 가열 (ZnSe Crystal)
적용장비
거의 모든 FT-IR

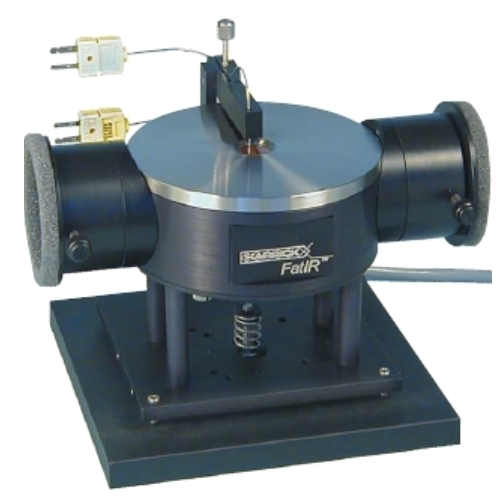

The FatIR Dual Heated Single Bounce ATR Accessory

FatIR = RangeIR + Safe, Low Voltage Heater



. The RangeIR™ is a powerful tool for the analysis of liquids, pastes, and gels under controlled temperatures up to 175°C. The unique design allows the safe use of the sample temperature itself in this control, an invaluable feature for rigorous studies. Reactants and reaction products can be monitored as a function of temperature. In addition, the RangeIR™ can be used for sensitive measurements on dissolved or suspended species, by using the elevated temperature to volatilize an interfering liquid. The RangeIR™ allows routine quantitative and qualitative measurements on temperature-controlled liquids, pastes, and gels. Applications include real-time in-situ monitoring of reactants and reaction products in liquids as a function of temperature and analysis of dissolved or suspended species in interfering liquids.

. 2개의 K타입 Thermocouple을 이용하며 ATR크리스탈과 샘플의 온도를 동시에 모니터링함

. ATR Crsytal : ZnSe standard, ZnS & Ge 옵션



Features

. Reproducible measurements.

. Convenient trough for containing liquid samples.

. Fixed 45° single reflection horizontal ATR configuration.

. SuperCharged™ ZnSe ATR Crystal or Gemanium ATR Crystal.

. Safe, low-voltage heaters permit operation up to 175°C (Note: Germanium becomes optically opaque at temperatures exceeding 100°C.)

. K-type thermocouple directly measures the sample temperature and flips out of the way for easy cleaning of the ATR crystal.

. Secondary K-type thermocouple monitors the crystal temperature, permitting the cascade temperature regulation required as a fail-safe for high temperature operation.

. PermaPurge™ for rapid purging of the FTIR system.

. Requires the Low Voltage Temperature Controller for precise and safe regulation of the sample temperature, with options for direct, cascade, and computer control.

. Available in a specialized configuration, the FatIR, for trans fat analysis.



RangeIR

. SuperCharged™ ZnSe mounted ATR crystal.

. Two imbedded cartridge heaters.

. Two K-type thermocouples.

. Mating and PermaPurge™ hardware for the specified FT-IR spectrometer



FatIR

. RangeIR

. Temperature Controller with USB to RS-485 adapter for computer control.
