제품소개

제품소개

장비명
Horizon
측정방식
Multi Bounce HATR, 다반사 ATR 액세서리
측정샘플
다양한 고체, 액체
특징
ZnSe, Ge Crystal Plate
특징
13번 반사 ATR Crystal
적용장비
거의 모든 FT-IR

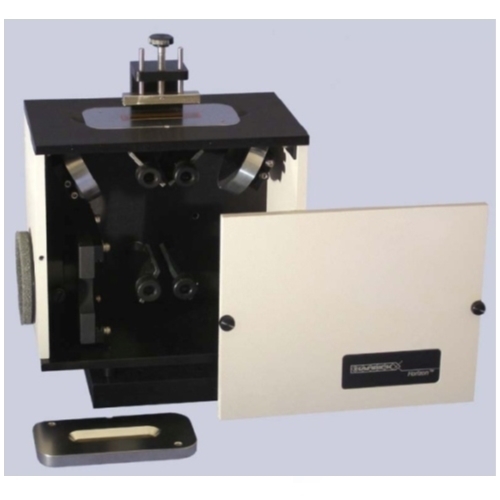

Horizon Multiple Reflection ATR Accessory



. The Horizon™ multiple reflection ATR accessory is well suited for analysis of liquids, pastes, powders, and thick films by infrared spectroscopy. Its unique design utilizes the astigmatism inherent in spherical mirrors to shape the FT-IR beam to match the aperture of the ATR crystal, keeping radiation away from the edges of the crystal. This eliminates spectral interference from the adhesive securing the crystal and results in higher throughput. The Horizon™ features a convenient horizontal sampling surface (HATR) and PermaPurge™ for rapid sample and crystal exchange without interrupting the purge of the FT-IR system. The Horizon™ is perfect for quality control and research applications. Optional cells are available for flow and temperature-controlled applications.



. 다반사 ATR 액세서리

. (옵션) Flow Cell, 온도조절 Flow Cell, Flat & Trough Plate

. Flow Cell의 경우 Luers 형태와 Swageloks 형태 중 선택

. Thirteen reflections from the sample

. Solid sampling plate includes pressure plate for analyzing powders and solids.

. Gasket-sealed trough for measurements of liquids and pastes. User replaceable ATR crystal.

. Utilizes astigmatism to match the beam shape to that of the ATR crystal, creating insensitive edges within the crystal, minimizing spectral inference from the adhesive or gasket used to mount the crystal.

. High spectral contrast.

. High throughput (25-40%).

. PermaPurge™ permits crystal exchange with minimal interrupting of the purge of the FT-IR system.

. Wire grid polarizer available separately.



Includes

. One mounted ZnSe 50x10x2mm SPT 45° ATR crystal

. Solid or liquid sampling plate. Solid sampling plate includes a pressure plate and clamp; the liquid sampling plate has a trough to contain the liquid.

. Mating hardware for the specified FT-IR spectrometer.

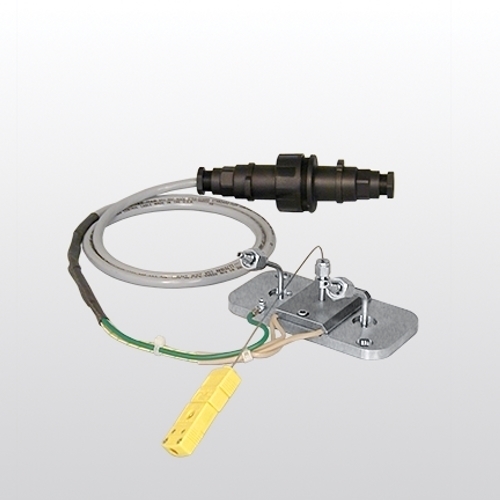

Horizon Tempearture Controlled Flow Cells Option

. These flow through liquid cell adapters attached to Horizon sampling plates. They are ideal for examining liquids under sealed, flow, and temperature-regulated applications. Interactions of gases with coatings on the crystals can also be studied with the appropriate adapter. All flow cells are made from chemically resistant 316 stainless steel. Several configuratons of these adapters are offered. Temperature controlled models are operable from -10ºC to 190ºC. The temperature is either regulated using a recirculating chiller or heated using a suitable temperature controller and the built-in heaters. These adapters are equipped with either Luer fittings or Swagelok fittings. The solid plate adapters have an approximate volume of 0.14 ml and use an 027 o-ring to seal directly to the ATR crystal. The trough adapters have an approximate volume of 2.89 ml and use an 032 o-ring to seal to the trough.
