장비명
Starna Metal-on-Quartz filters
Wavelengths
250 – 2500 nm
Absorbance
0 – 2 A

Starna Metal-on-Quartz filters



.  This Certified Reference Material can be used to qualify the Absorbance scale, in the ultra-violet and visible region of the spectrum (250 nm to 850 nm) of spectrophotometers with spectral bandwidths not exceeding 10 nm

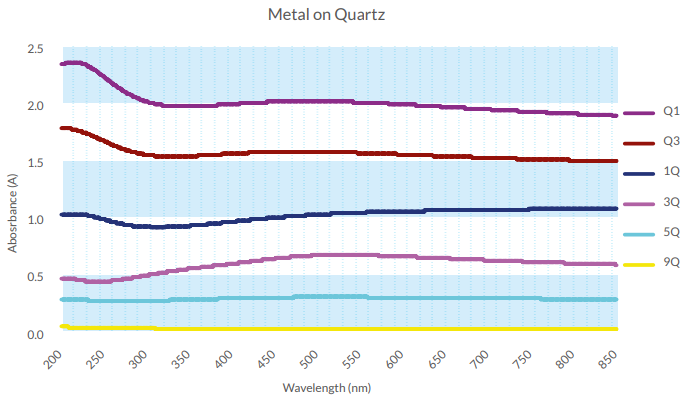

.  The spectrum of these filters is essentially flat from 250 nm to 850 nm. Absorbance and Transmittance values are certified at 250, 280, 340, 360, 400, 465, 500, 546.1, 590 and 635 nm







기본구성



Nominal Transmittance and Absorbance Values

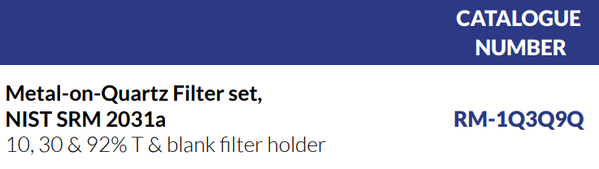

CATALOGUE NUMBER

92% T (0.04 A)

RM-9Q

50% T (0.3 A)

RM-5Q

30% T (0.5 A)

RM-3Q

10% T (1.0 A)

RM-1Q

3% T (1.5 A)

RM-Q3

1% T (2.0A)

RM-Q1































장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 /  kri@k-ri.co.kr
