장비명
Starna NIR Neutral Density Glass References
Wavelengths
800 - 3200 nm

Starna NIR Neutral Density Glass References



.  These references can be used to qualify the absorbance accuracy and linearity of near-infrared spectrophotometers with a spectral bandwidth of 6.5 nm or less, over the wavelength range 800 nm - 3200 nm







Calibration values (in % Transmission and Absorbance) are certified at 1100, 1700, 2210, 2500 and 2850 nm. Three filters are available, designated R1, R3 and I1









기본구성

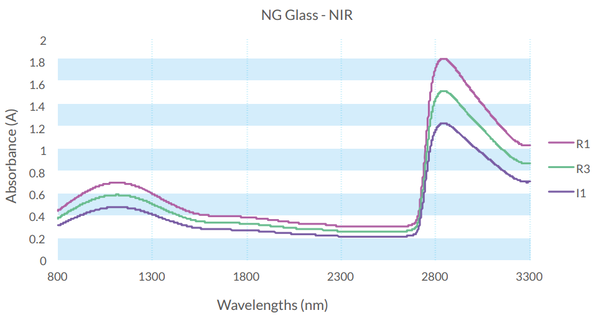

Nominal values at certified wavelength

CATALOGUE NUMBER

1100 nm

1700 nm

2210 nm

2500 nm

2850 nm

%T

A

%T

A

%T

A

%T

A

%T

A

20

0.70

40

0.40

47

0.32

49

0.31

2

1.83

RM-R1

25

0.59

46

0.34

53

0.28

55

0.26

3

1.54

RM-R3

33

0.48

53

0.28

59

0.23

60

0.22

6

1.25

RM-I1

Set of all 3 filters as above

RM-R1R3I1
