Starna Polystyrene NIR References



.  These traceable reference materials can be used to qualify Mid IR - FTIR spectrophotometers for wavelength accuracy over an operating range of 540 cm^-1 to 3125 cm^-1 (3.2 µm to 18.5 µm)

.  One version of the product can also be used to qualify the resolution of a Mid IR instrument as required by some pharmacopoeias and for the wavelength qualification of ATR (Attenuated Total Reflectance) measurements in the Mid-IR

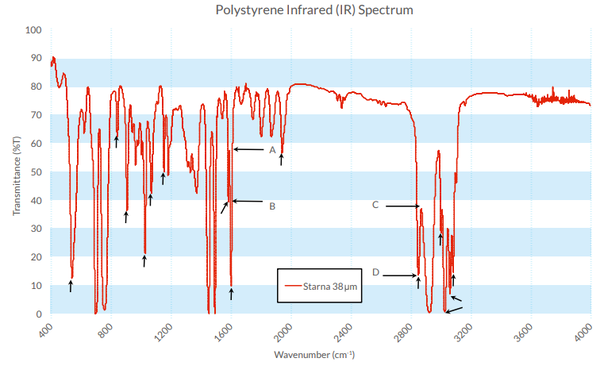

Approximate peak wavelength values (in cm-1) are: 539, 842, 907, 1028, 1069, 1155, 1583,1601, 1943, 2849, 3001, 3026, 3060, and 3082

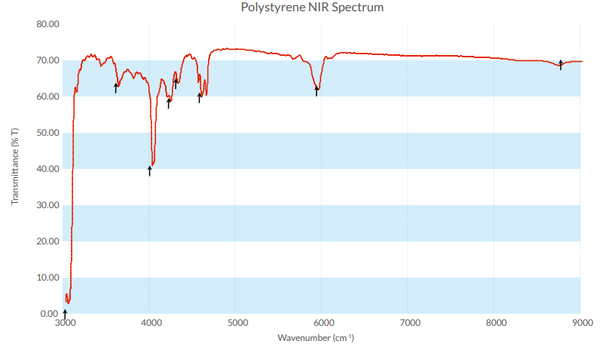

Nominal peak values are: In cm-1 : 3064, 3647, 4039, 4250, 4335, 4608, 5952, 8749 In nm: 3264, 2742, 2476, 2353, 2307, 2170, 1680, 1143



















기본구성



	CATALOGUE NUMBER
Starna Mid IR-FTIR Polystyrene Reference, 38 µm	RM-1921/38
Starna Mid IR-FTIR/NIR Polystyrene Reference, 65 µm	RM-1921/65
Starna Mid IR-FTIR Polystyrene Reference for ATR, 38μm	RM-1921/38/ATR
