메뉴얼 혹은 자동 방식 편광기
- 2 x 3" 슬라이드 마운트 형태로 Polarizer 직경 25mm / 마운트가 있는 경우 20mm
- 80Spec, VeeMAX, RotatIR을 비롯한 다양한 PIKE 장치에 호환 가능
- (옵션) PIKE AutoPRO를 이용한 컴퓨터 자동 제어 가능
Polarizers - Manual and Automated Versions for Molecular Spectroscopy
• Convenient, slide-mount design for all FTIR spectrometers
• Compatible with many PIKE Technologies accessories
• Available in manual and automated versions
• Elements for NIR, mid-IR, and far-IR applications
Polarizer | SPECIFICATIONS |
Element Type : | ZnSe, KRS-5, Ge, CaF2, Glass, BaF2, Polyethylene |
Element Diameter : | 25 mm |
Clear Aperture Diameter : | 20 mm |
Dimensions (W x D x H) | |
Manual : | 50 x 86 x 9 mm (NIR glass manual polarizers are 17-mm thick) |
Precision Manual : | 50 x 142 x 9 mm |

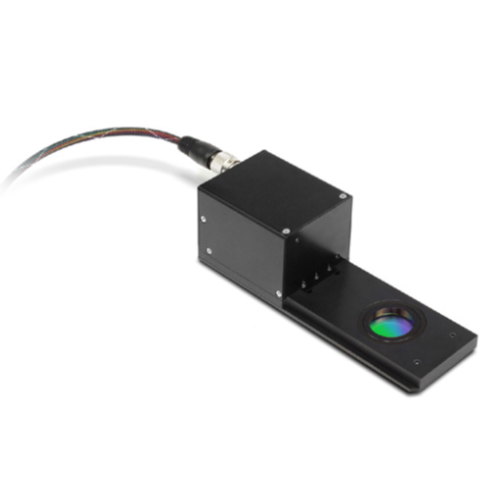

Automated Precision: | 50 x 146 x 55 mm |
장비 관련 상세 문의를 원하시면 -> Click 또는 02-2659-9948 / kri@k-ri.co.kr
